SUTI Series 12mm Tube OD Union Tee Fitting
SUTI Series 12mm Tube OD Union Tee Fitting
SKU:SUT-72c8dd
Premium 12mm Tube OD Union Tee Fitting with patented i-Fitting® design for perfect compression, safety, and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUTI Series 12mm Tube OD Union Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUTI Series 12mm Tube OD Union Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

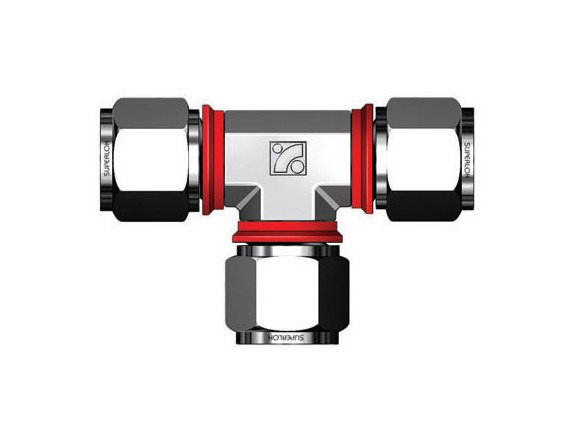

The SUTI Series 12mm Tube Outside Diameter Union Tee Fitting is designed to efficiently connect metric tubes. Made of premium materials like Alloy 625, Stainless Steel, and others, it boasts i-Fitting® components for enhanced safety and productivity. Its patented design includes a built-in gap gauge to prevent over- or under-tightening, ensuring perfect compression. Ideal for valve connections in high-pressure and hazardous chemical environments, this fitting is a game-changer in the industry.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

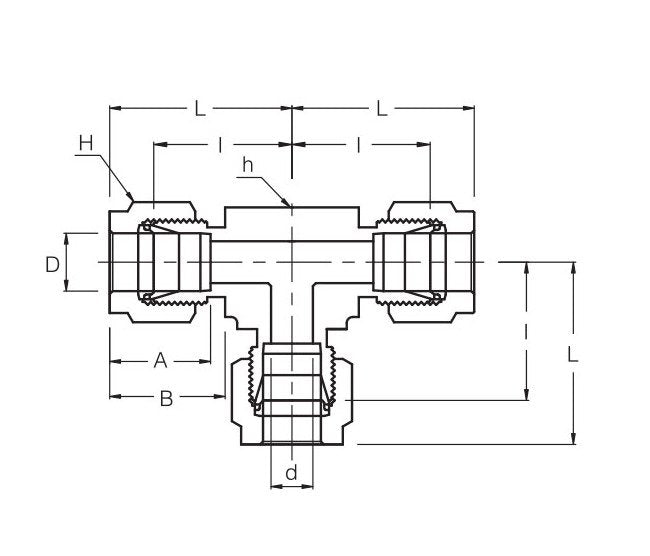

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
