SUTI Series 25mm Union Tee Fitting
SUTI Series 25mm Union Tee Fitting
SKU:SUT-ceb942
Securely connect metric tubes with the innovative SUTI Series 25mm Union Tee Fitting for optimal compression and safety in high-pressure environments.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
SUTI Series 25mm Union Tee Fitting
$32.99
Quantity: 1
Claim Your Seller Account
SUTI Series 25mm Union Tee Fitting
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

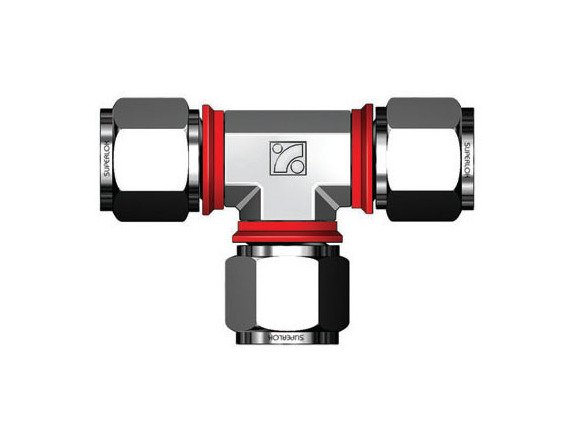

The SUTI Series 25mm Tube Outside Diameter Union Tee Fitting is a precision-engineered solution that securely connects metric tubes. Crafted from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting boasts i-Fitting® components for perfect compression, improved safety, and enhanced productivity. Its patented design by BMT includes a built-in gap gauge for optimal tightening, making it ideal for high-pressure and chemical environments. With dimensions ranging from 6mm to 25mm, this fitting offers reliability, durability, and efficiency in valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

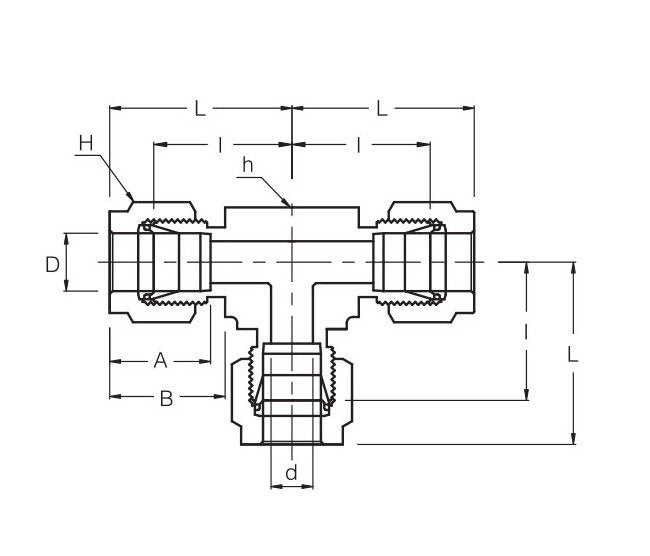

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.3 mm
Technical Specs Dimension B
26.5 mm
Technical Specs Dimension I
36.8 mm
Technical Specs Dimension L
49.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38 mm
