SUTI Series 3/4in Union Tee Fitting
SUTI Series 3/4in Union Tee Fitting
SKU:SUT-c51a6d
High-quality 3/4in Union Tee Fitting for secure tube connections in various industries. Patented design for safety & efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SUTI Series 3/4in Union Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SUTI Series 3/4in Union Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

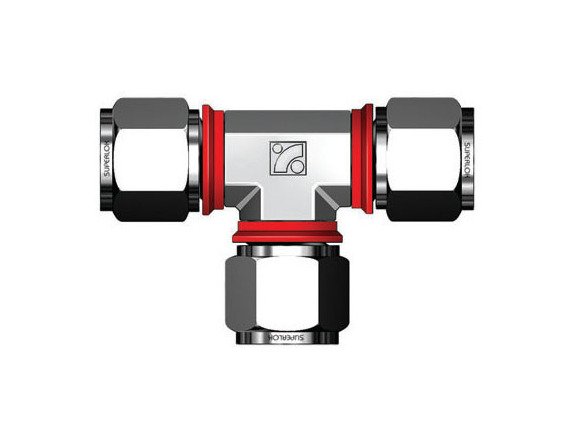

The SUTI Series 3/4 Inch Union Tee Fitting is designed to connect fractional tubes seamlessly. Made of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting incorporates i-Fitting® components for enhanced safety and productivity. The patented design features a built-in gap gauge to prevent over- or under-tightening, making it ideal for high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

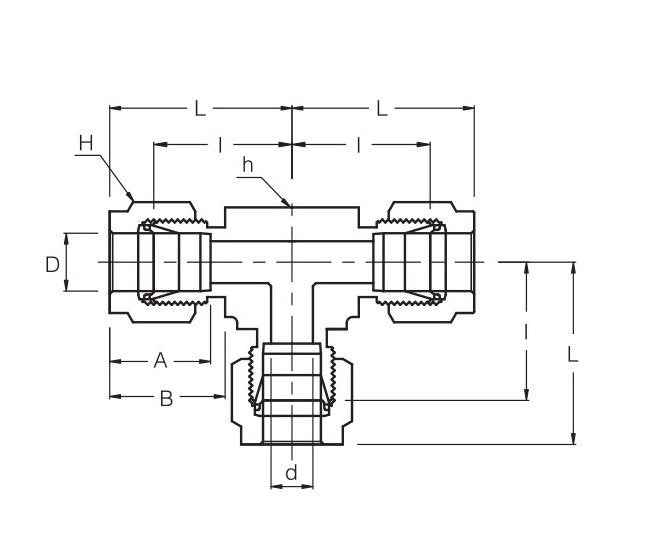

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
29.71 mm
Technical Specs Dimension L
39.87 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
