SUTI Series 3/8" Tube Union Tee Fitting
SUTI Series 3/8" Tube Union Tee Fitting
SKU:SUT-f42881
Precision-engineered SUTI Series 3/8" Tube Union Tee Fitting for secure and safe fractional tube connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SUTI Series 3/8" Tube Union Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SUTI Series 3/8" Tube Union Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

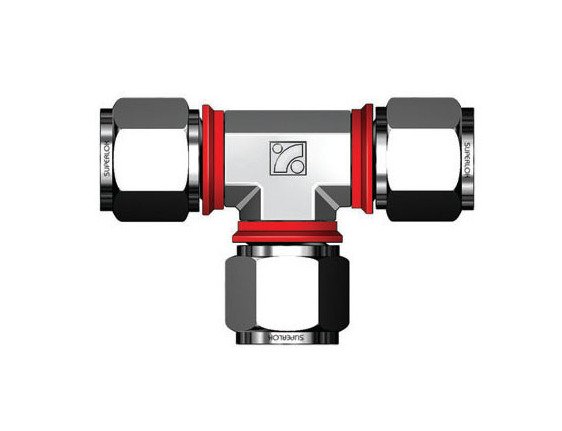

The SUTI Series 3/8" Tube Union Tee Fitting is designed to connect fractional tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and stainless steel, this fitting ensures durability and performance in demanding environments. The innovative i-Fitting® components, featuring a built-in check ring for perfect compression, enhance safety and productivity, making it ideal for high-pressure and hazardous applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

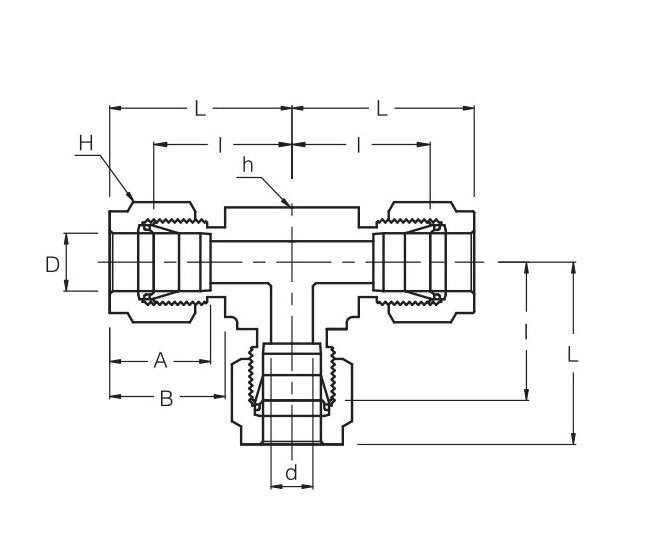

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
