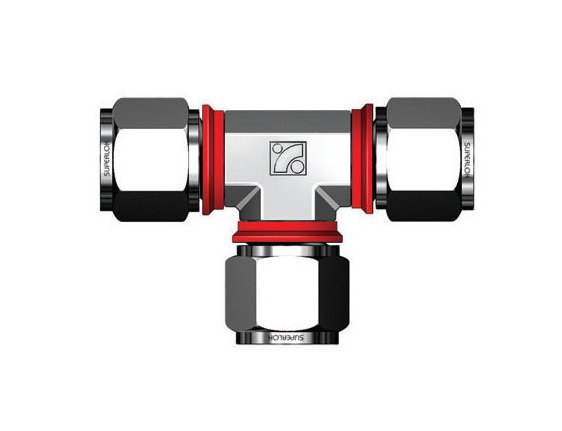

SUTI Series 8mm Tube Union Tee Fitting
SUTI Series 8mm Tube Union Tee Fitting
SKU:SUT-b62a54
Precision-engineered 8mm Union Tee Fitting for metric tubes, with i-Fitting® design for perfect compression, safety, and productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SUTI Series 8mm Tube Union Tee Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SUTI Series 8mm Tube Union Tee Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUTI Series 8mm Tube Outside Diameter Union Tee Fitting is a precision-engineered component suitable for metric tube connections. Crafted from Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this fitting guarantees durability and reliability in diverse industrial applications. Featuring the innovative i-Fitting® design, this fitting ensures perfect compression, enhances installer safety, and optimizes productivity, making it ideal for high-pressure and chemical environments. Experience industry-changing performance and superior quality with the SUTI Series Union Tee Fitting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

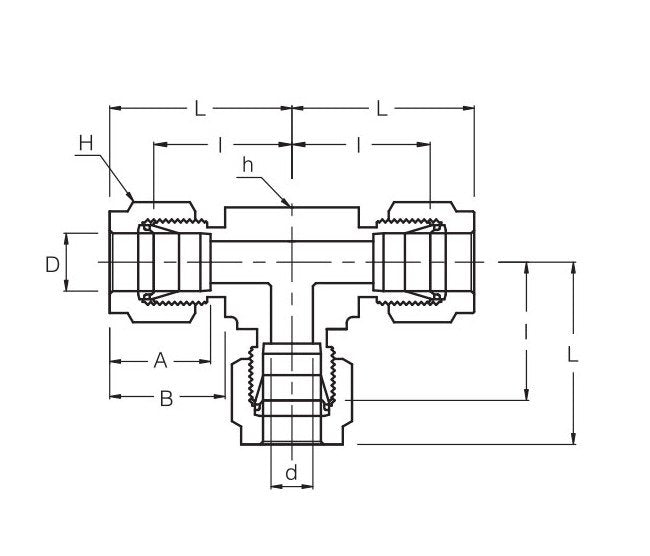

Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
22.4 mm
Technical Specs Dimension L
29.9 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Width Across Flat H
16 mm
