SVS Single Base Mounted Vertical Sheave Assemblies
SVS Single Base Mounted Vertical Sheave Assemblies
SKU:RIG-23c97b
Heavy-duty SVS sheave assemblies for precise lifting and pulling tasks with 10000 lbs. capacity and versatile mounting options.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SVS Single Base Mounted Vertical Sheave Assemblies
$299.99
Quantity: 1
Claim Your Seller Account
SVS Single Base Mounted Vertical Sheave Assemblies
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SVS Single Base Mounted Vertical Sheave Assemblies are expertly designed for heavy-duty applications, with a 10000 lbs. capacity and compatibility with 5/8 inches wire rope diameter. These assemblies offer precise operations with dimensions that meet industry standards for lifting and pulling tasks. Featuring a robust construction and versatile mounting options, these sheave assemblies ensure reliable performance in diverse environments, making them ideal for institutional and government procurement needs.

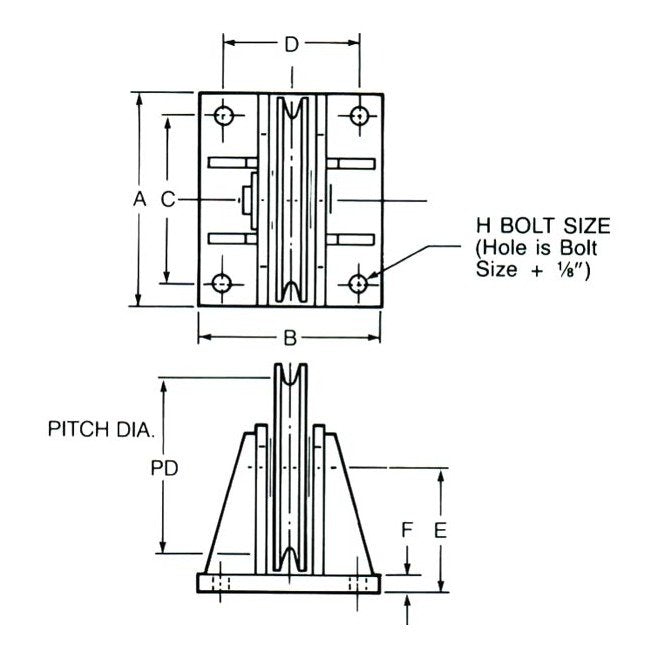

Product Specifications
Specifications Capacity
10000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
15 1/2 inches
Specifications Dimension B
12 inches
Specifications Dimension C
12 inches
Specifications Dimension D
9 inches
Specifications Dimension E
8 1/8 inches
Specifications Dimension F
1 inches
Specifications Dimension H
1 1/4 inches
Specifications Model
SVS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
12 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/8 inches
