Swage Marine Toggle - Grade 316 Stainless Steel
Swage Marine Toggle - Grade 316 Stainless Steel
SKU:STA-25bc9c
Durable Swage Marine Toggle in Grade 316 Stainless Steel for secure marine rigging. Fits wire sizes 1/8' to 3/8'.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

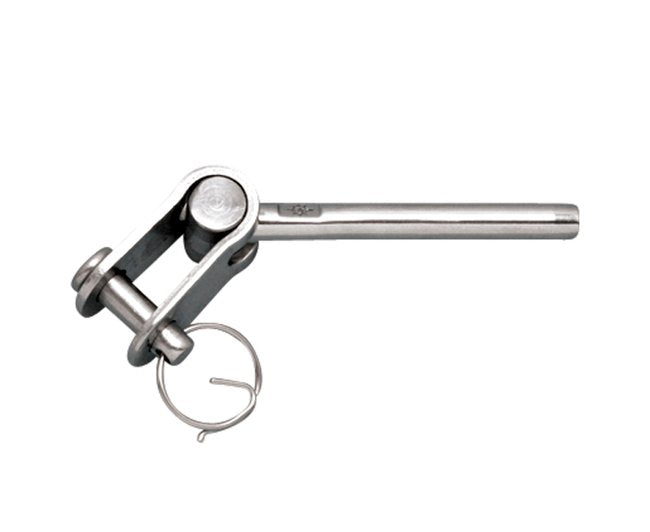

The Swage Marine Toggle, crafted from high-grade 316 stainless steel, offers unparalleled durability and corrosion resistance, making it an ideal choice for marine rigging and lifeline applications. With dimensions optimized to fit wire sizes ranging from 1/8' to 3/8' and precision machined for consistent quality, this toggle ensures secure connections for projects of any scale. Trusted by Suncor, this swage terminal meets stringent industry standards for reliability and performance.

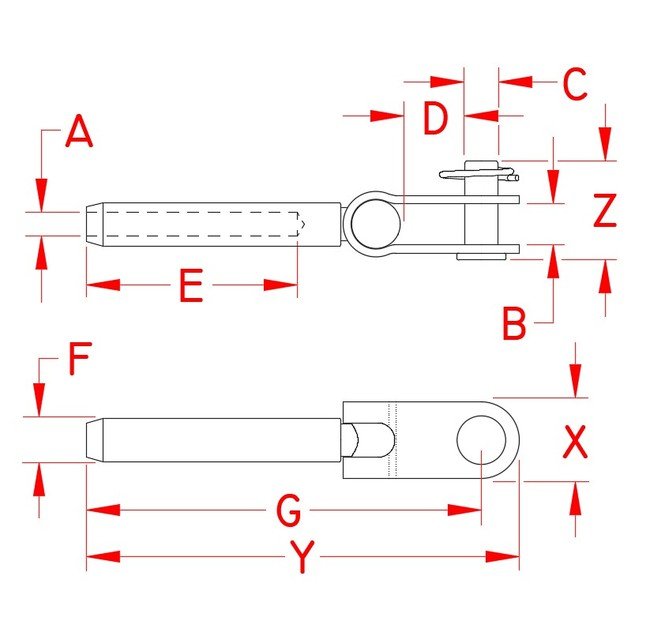

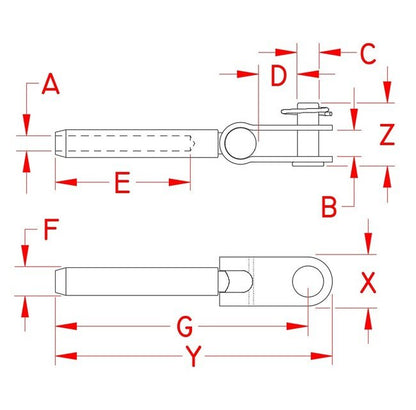

Product Specifications
Specifications After Swage
0.44 in
Specifications Before Swage
0.49 in
Specifications Dimension A
1/4 in
Specifications Dimension B
0.47 in
Specifications Dimension C
0.38 in
Specifications Dimension D
0.74 in
Specifications Dimension E
2.52 in
Specifications Dimension G
4.49 in
Specifications Dimension X
0.86 in
Specifications Dimension Y
4.94 in
Specifications Dimension Z
1.12 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.29 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
