SWB 320 Series 0.188in Swing-Out Ball Valve
SWB 320 Series 0.188in Swing-Out Ball Valve
SKU:SWB-a252bf
High-performance SWB 320 Series Swing-Out Ball Valve with 0.188in orifice, perfect for high-pressure applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SWB 320 Series 0.188in Swing-Out Ball Valve
$149.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.188in Swing-Out Ball Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

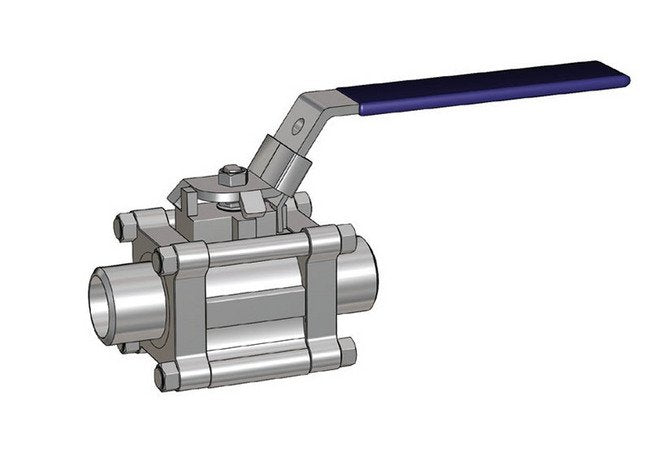

The SWB 320 Series Swing-Out Ball Valve features an orifice size of 0.188in, suitable for high-pressure applications with a pressure rating of 3000 psig. With a temperature range of -20 to 450°F and precise construction including 1/4in butt weld end connections, this valve ensures reliable performance. Each valve undergoes rigorous nitrogen and hydrostatic testing to meet industry standards for safety and quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

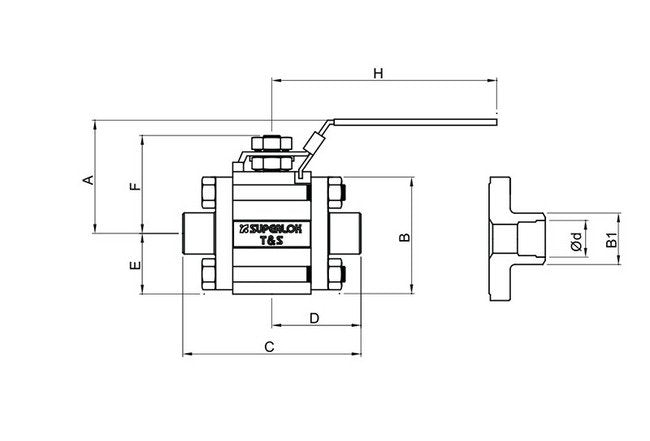

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
10.40 mm
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension B1
13.70 mm
Technical Specs Dimension C
52.4 mm
Technical Specs Dimension D
26.20 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/4 in. Butt Weld
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
4.8 mm | 0.188 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
10
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
