SWB 320 Series 0.281" Swing-Out Ball Valve
SWB 320 Series 0.281" Swing-Out Ball Valve
SKU:SWB-599309
SWB 320 Series 0.281" Swing-Out Ball Valve - High-performance industrial valve for precise control and durability.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SWB 320 Series 0.281" Swing-Out Ball Valve
$149.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.281" Swing-Out Ball Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

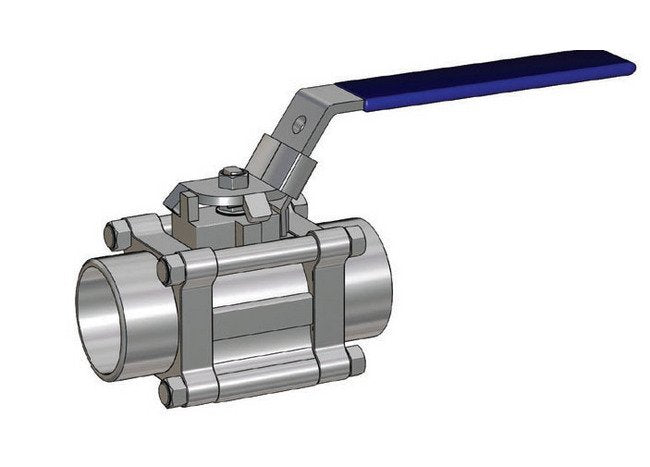

The SWB 320 Series Swing-Out Ball Valve features a 0.281-inch orifice size, 9.7-inch diameter, and 3/8-inch socket weld end connections. With a pressure rating of 3000 psig and a temperature range of -20 to 450 ºF, this valve is ideal for a wide range of industrial applications. Each valve undergoes rigorous testing to ensure performance and reliability. Its compact design and precision engineering make it a standout choice for both consumer and institutional buyers seeking superior quality and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

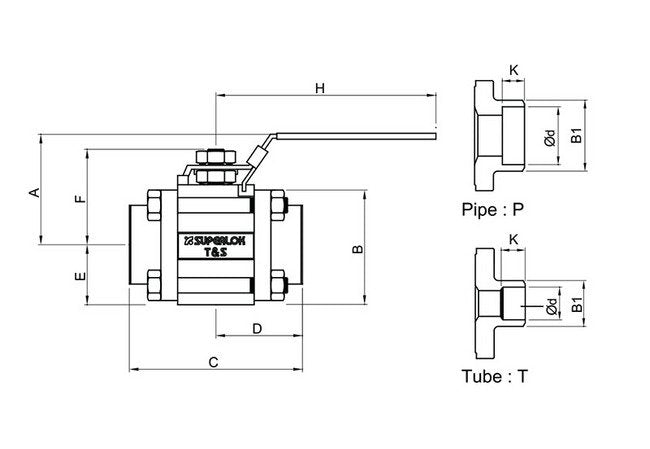

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
9.7 mm
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension B1
17.10 mm
Technical Specs Dimension C
55.4 mm
Technical Specs Dimension D
27.70 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs Dimension K
7.9 mm
Technical Specs End Connections
3/8 in. Socket Weld
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
