SWB 320 Series 0.281in Orifice Swing-Out Ball Valve
SWB 320 Series 0.281in Orifice Swing-Out Ball Valve
SKU:SWB-0428e9
High-performance SWB 320 0.281in Orifice Ball Valve with 1/8in FNPT, 3000 psig rating & -20 to 450°F temperature range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SWB 320 Series 0.281in Orifice Swing-Out Ball Valve
$49.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.281in Orifice Swing-Out Ball Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

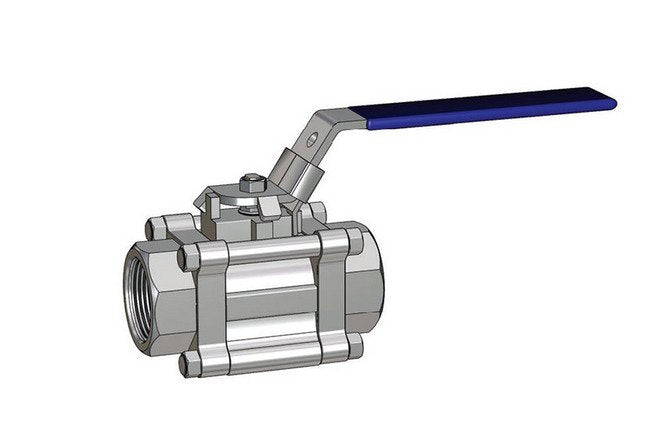

The SWB 320 Series Swing-Out Ball Valve features a precise 0.281in orifice size and 1/8in FNPT end connections, suitable for high-pressure applications with a 3000 psig rating. With a wide temperature range of -20 to 450°F, this valve ensures reliable performance in diverse environments. Each valve undergoes rigorous nitrogen testing, meeting industry standards and offering exceptional reliability. Dimensionally precise and adaptable, this valve delivers optimal flow control with a Cv of 3.8.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

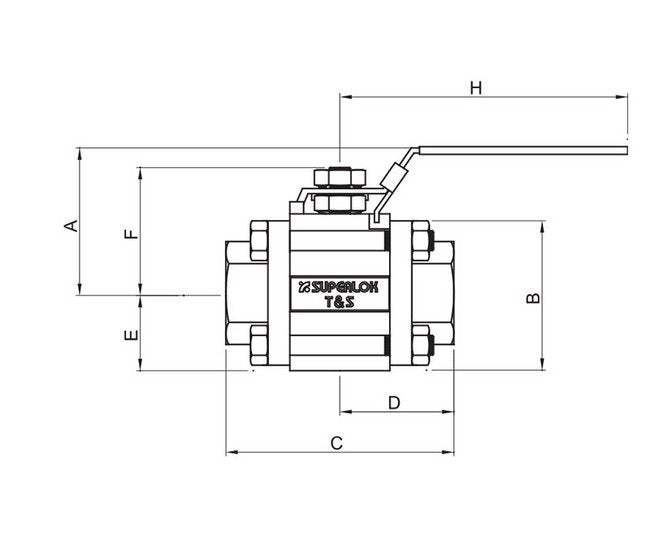

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
55.4 mm
Technical Specs Dimension D
27.70 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
