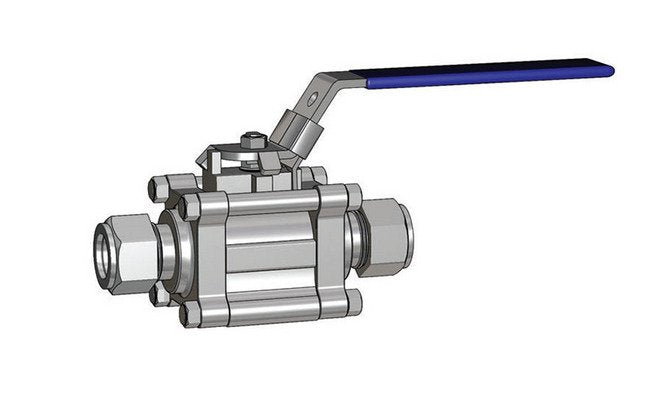

SWB 320 Series 0.516 Inch Swing-Out Ball Valve
SWB 320 Series 0.516 Inch Swing-Out Ball Valve
SKU:SWB-148e00
High-performance SWB 320 Series Swing-Out Ball Valve with 0.516" orifice & 3/4" SUPERLOK® end connections. Pressure rated at 3000 psig, -20 to 450°F temperature range. Nitrogen tested for reliability.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
SWB 320 Series 0.516 Inch Swing-Out Ball Valve
$159.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.516 Inch Swing-Out Ball Valve
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve features a 0.516-inch orifice size and 3/4-inch SUPERLOK® end connections, ensuring reliable performance in high-pressure environments with a pressure rating of 3000 psig. With a temperature rating from -20 to 450°F, this valve is versatile and durable. Each valve undergoes rigorous nitrogen and hydrostatic testing, meeting industry standards for leak prevention. Dimensions and drawings are provided for reference, offering flexibility for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

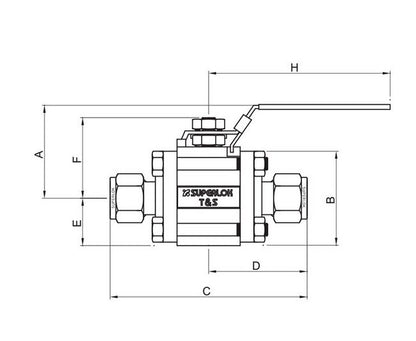

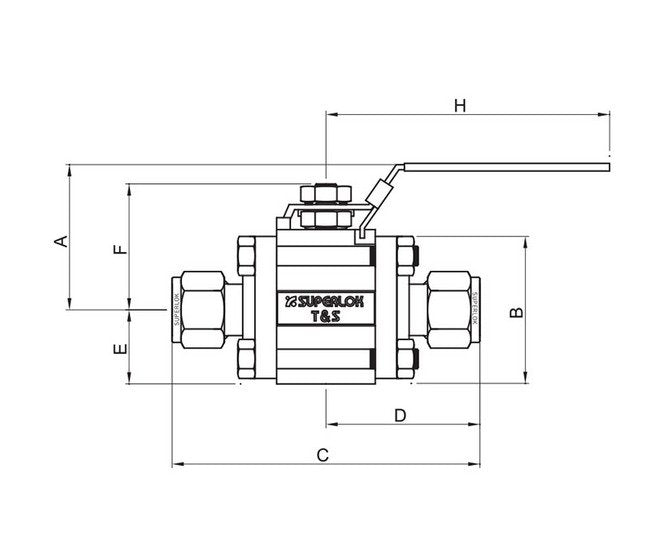

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension C
103.8 mm
Technical Specs Dimension D
51.90 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
13.6
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
