SWB 320 Series 0.516" Swing-Out Ball Valve
SWB 320 Series 0.516" Swing-Out Ball Valve
SKU:SWB-214620
High-performance SWB 320 Series 0.516" Swing-Out Ball Valve for industrial applications. Pressure Rating: 3000 psig. Temperature Range: -20 to 450°F.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SWB 320 Series 0.516" Swing-Out Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.516" Swing-Out Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

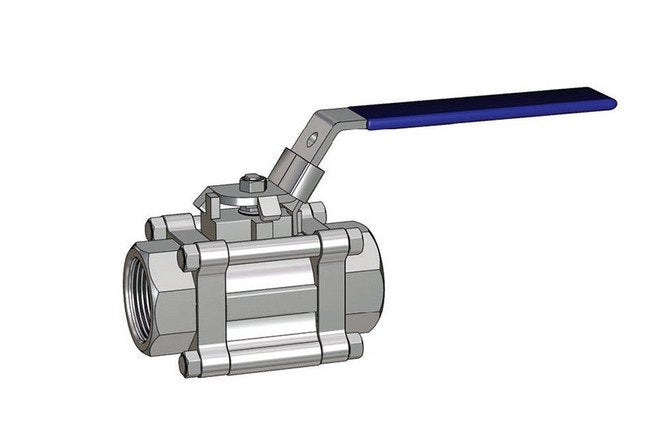

The SWB 320 Series Swing-Out Ball Valve features a 0.516-inch orifice size and 3/8-inch Female National Pipe Thread (FNPT) end connections. With a pressure rating of 3000 psig and a temperature range from -20 to 450°F, this valve ensures reliable performance in various industrial applications. Tested rigorously for leak prevention, this valve is designed for durability and efficiency. Its compact dimensions and sturdy construction make it a versatile choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

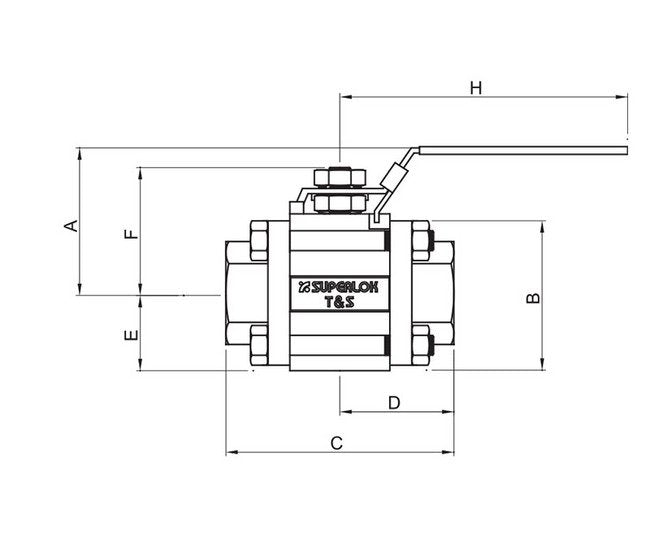

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
3/8 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
12
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
