SWB 320 Series 0.875 Inch Swing-Out Ball Valve
SWB 320 Series 0.875 Inch Swing-Out Ball Valve
SKU:SWB-63f384
High-performance SWB 320 Series 0.875 Inch Swing-Out Ball Valve for industrial applications, with superior pressure and temperature ratings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SWB 320 Series 0.875 Inch Swing-Out Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.875 Inch Swing-Out Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

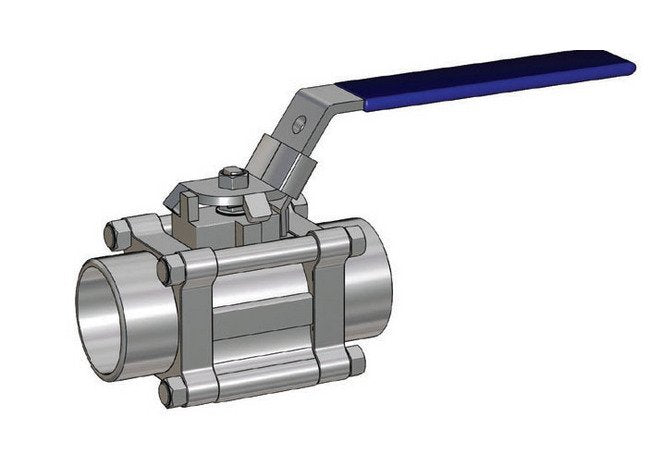

The SWB 320 Series Swing-Out Ball Valve with 0.875-inch orifice size and 25.65-inch diameter offers exceptional performance for industrial applications. It boasts a pressure rating of 3000 psig, temperature range of -20 to 450 °F, and precise flow control with a Cv of 40. Each valve undergoes rigorous nitrogen testing to ensure minimal leaks. With 1-inch socket weld end connections and compliance with industry standards, this valve is ideal for government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

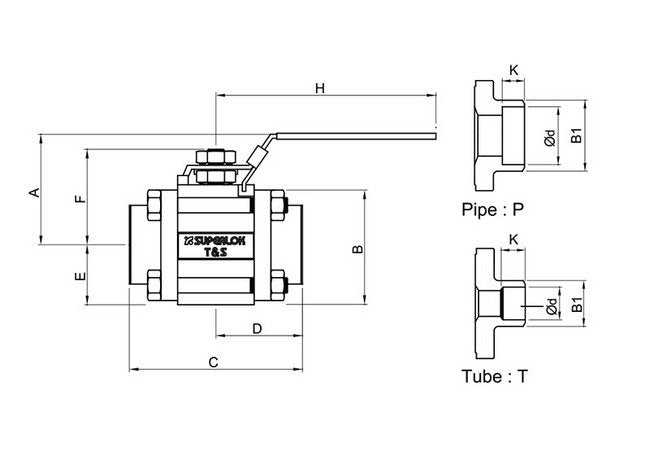

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
25.65 mm
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension B1
33.40 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.00 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs Dimension K
16.0 mm
Technical Specs End Connections
1 in. Socket Weld
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
