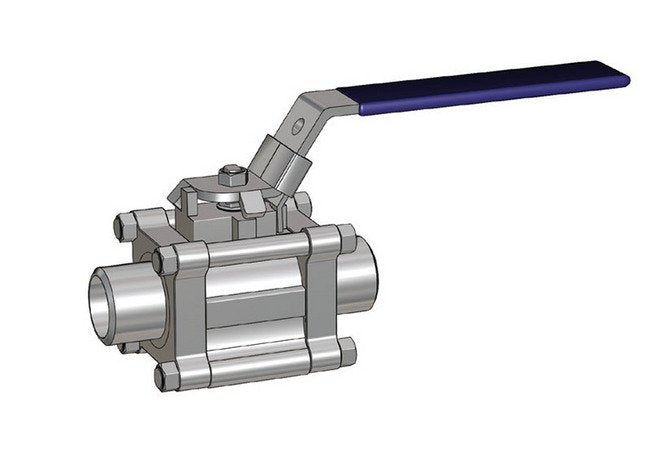

SWB 320 Series 0.875 Inch Swing-Out Ball Valve
SWB 320 Series 0.875 Inch Swing-Out Ball Valve
SKU:SWB-f4b3b9
High-performance Swing-Out Ball Valve with 0.875 in orifice, 3000 psig, -20 to 450 °F temp range, and 1 in butt weld end connections.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SWB 320 Series 0.875 Inch Swing-Out Ball Valve
$349.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.875 Inch Swing-Out Ball Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve features an orifice size of 0.875 inches and a diameter of 26.60 inches, designed with 1-inch butt weld end connections. With a pressure rating of 3000 psig and a temperature range from -20 to 450 °F, this valve ensures reliable performance in various industrial applications. Tested for maximum leak rate and hydrostatic shell integrity, it guarantees safe and efficient operation. Dimensions may vary and customization options are available to suit specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

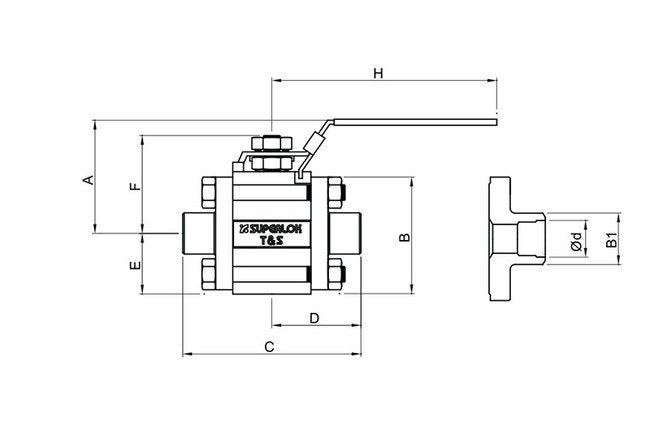

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
26.60 mm
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension B1
33.40 mm
Technical Specs Dimension C
88.9 mm
Technical Specs Dimension D
44.45 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
1 in. Butt Weld
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
40
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
