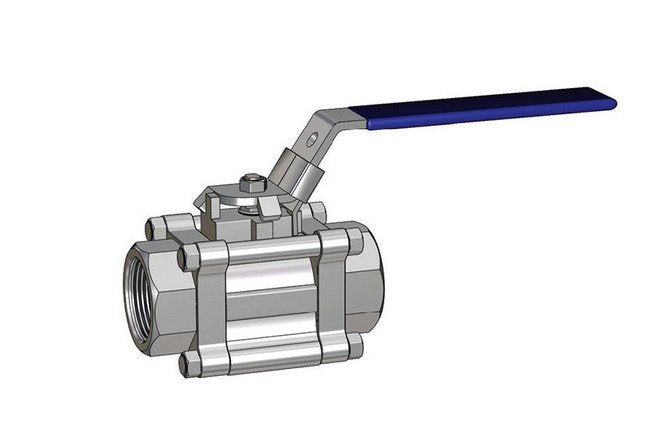

SWB 320 Series 0.875" Orifice Size Swing-Out Ball Valve
SWB 320 Series 0.875" Orifice Size Swing-Out Ball Valve
SKU:SWB-7ec8f0
High-performance SWB 320 Series Swing-Out Ball Valve for industrial applications, with 3000 psig pressure rating and 1" FNPT end connections.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SWB 320 Series 0.875" Orifice Size Swing-Out Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.875" Orifice Size Swing-Out Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series 0.875" Orifice Size Swing-Out Ball Valve is a high-performance valve designed for industrial applications. With a pressure rating of 3000 psig and a temperature range from -20 to 450°F, it ensures reliable operation in challenging environments. The 1" FNPT end connections provide secure fittings, and the valve is rigorously tested for leak prevention. Its compact dimensions and durable construction make it a dependable choice for fluid control systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

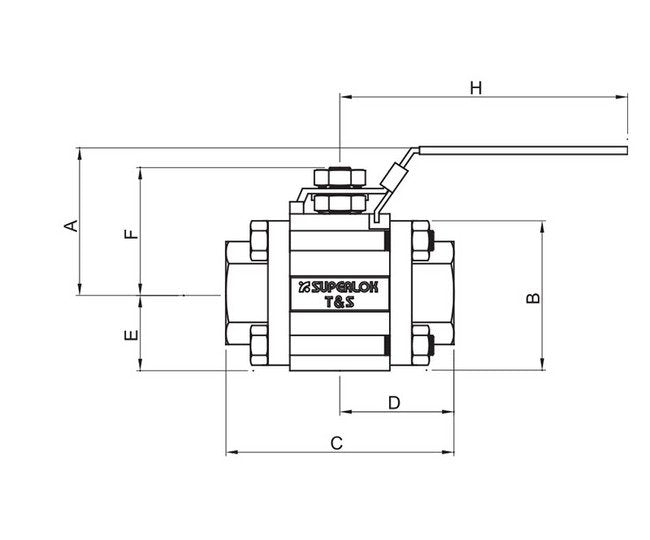

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.0 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
1 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
