SWB 320 Series 0.875" Swing-Out Ball Valve
SWB 320 Series 0.875" Swing-Out Ball Valve
SKU:SWB-153036
Precision-engineered SWB 320 0.875" Swing-Out Ball Valve for industrial fluid control needs. Reliable, durable, and tested for performance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SWB 320 Series 0.875" Swing-Out Ball Valve
$249.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.875" Swing-Out Ball Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

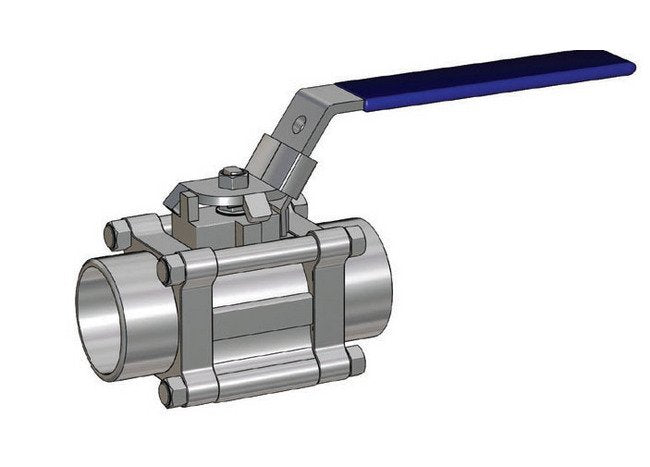

The SWB 320 Series 0.875 Inch Swing-Out Ball Valve is expertly crafted for durability and precision. With a pressure rating of 3000 psig, temperature range from -20 to 450°F, and tested rigorously to ensure leak-free performance, this valve is ideal for industrial applications. Its 1-inch socket weld end connections provide secure sealing, while its 33.9-inch diameter and compact design make it versatile for various setups. Meeting stringent industry standards, this valve offers reliability and efficiency in fluid control systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

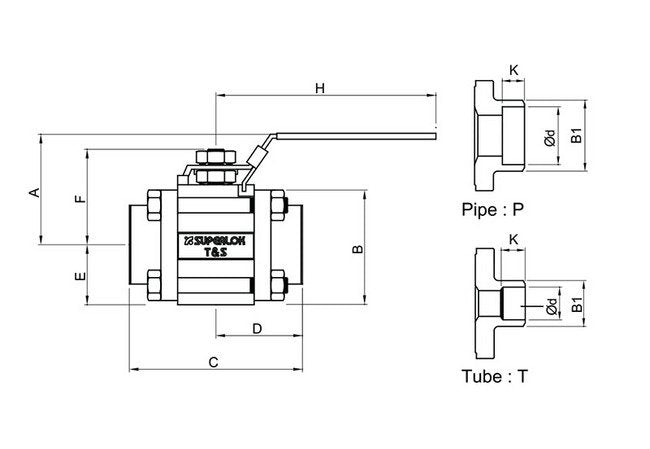

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
33.9 mm
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension B1
45.30 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.00 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs Dimension K
12.7 mm
Technical Specs End Connections
1 in. Socket Weld
Technical Specs Flow Coefficients Cv
42.0
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
