SWB 320 Series 0.875" Swing-Out Ball Valve
SWB 320 Series 0.875" Swing-Out Ball Valve
SKU:SWB-9baf12
High-performance SWB 320 Series 0.875" Swing-Out Ball Valve for precision control in industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SWB 320 Series 0.875" Swing-Out Ball Valve
$399.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 0.875" Swing-Out Ball Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

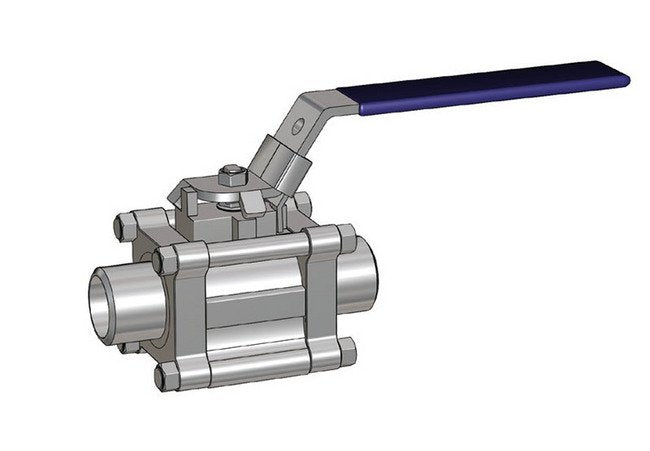

The SWB 320 Series Swing-Out Ball Valve features an orifice size of 0.875 inches, designed for high-pressure applications with a pressure rating of 3000 psig. With a temperature range of -20 to 450°F, this valve is versatile and reliable. Tested for leakage and hydrostatic shell for quality assurance. Its 3/4 inch butt weld end connections ensure secure installation, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

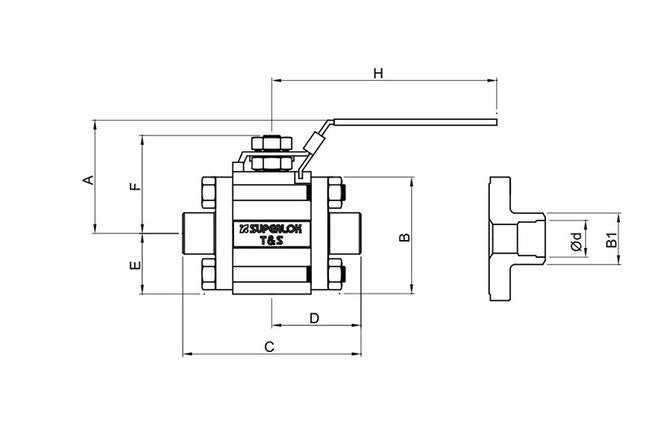

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
20.93 mm
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension B1
26.67 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.00 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
3/4 in. Butt Weld
Technical Specs Flow Coefficients Cv
36
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
40
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
