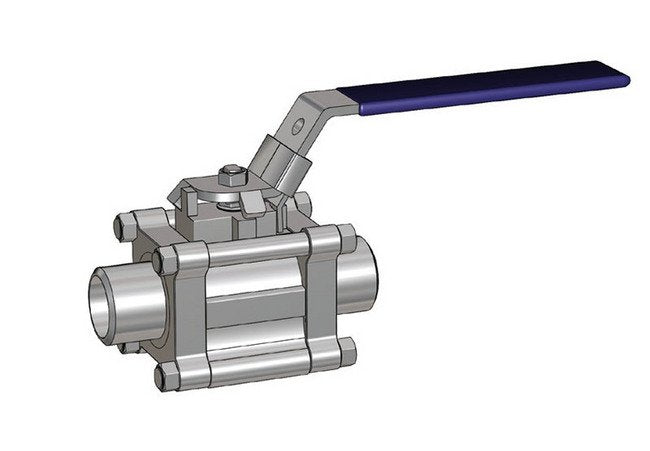

SWB 320 Series 1.125'' Swing-Out Ball Valve
SWB 320 Series 1.125'' Swing-Out Ball Valve
SKU:SWB-b94934
High-performance SWB 320 Series 1.125'' Swing-Out Ball Valve for industrial applications. Pressure rating: 3000 psig, Temp range: -20 to 450°F. Reliable and durable.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SWB 320 Series 1.125'' Swing-Out Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.125'' Swing-Out Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series 1.125 Inch Swing-Out Ball Valve is a robust solution designed for industrial applications, featuring a pressure rating of 3000 psig, temperature range from -20 to 450°F, 1-1/2 inch Butt Weld end connections, and a durable 38.10 mm diameter construction. Each valve undergoes rigorous testing to ensure superior performance and reliability. With precise technical specifications and exceptional durability, this valve is ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

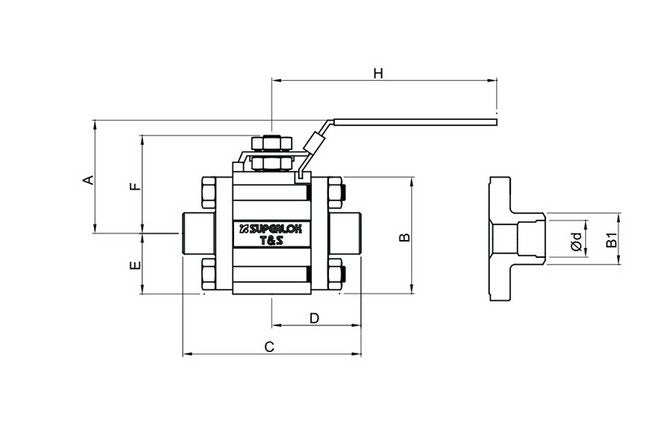

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
38.10 mm
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension B1
48.3 mm
Technical Specs Dimension C
115.8 mm
Technical Specs Dimension D
57.90 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
1-1/2 in. Butt Weld
Technical Specs Flow Coefficients Cv
100
Technical Specs Orifice Size
28.6 mm | 1.125 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
80
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
