SWB 320 Series 1.125in Swing-Out Ball Valve

SWB 320 Series 1.125in Swing-Out Ball Valve

SWB-a2392f

Versatile SWB 320 Series Valve with 1.125in orifice, 3000 psig rating & -20 to 450 ºF temp range. Perfect for industrial flow control.

$249.99
$249.99
Sale

Initiate Order

SWB 320 Series 1.125in Swing-Out Ball Valve

SWB 320 Series 1.125in Swing-Out Ball Valve

$249.99

Quantity: 1

Claim Your Seller Account

SWB 320 Series 1.125in Swing-Out Ball Valve

SWB 320 Series 1.125in Swing-Out Ball Valve

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

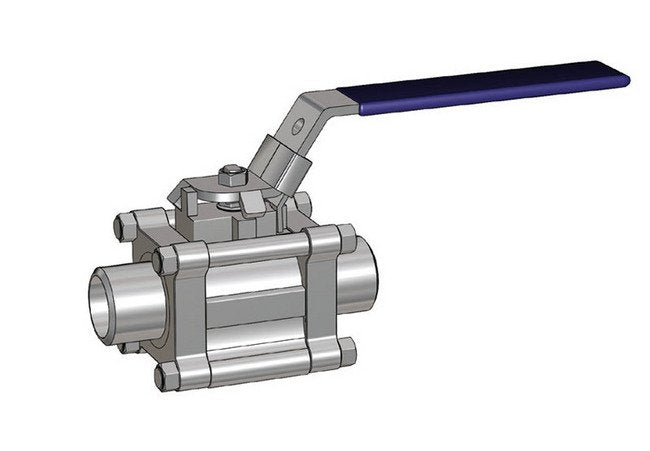

The SWB 320 Series Swing-Out Ball Valve features a 1.125in orifice size, designed for a pressure rating of 3000 psig and a temperature range of -20 to 450 ºF. With 1-1/2in butt weld end connections, this valve undergoes rigorous testing to ensure high performance and reliability. Its precise dimensions and robust construction make it ideal for industrial applications requiring superior flow control.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note

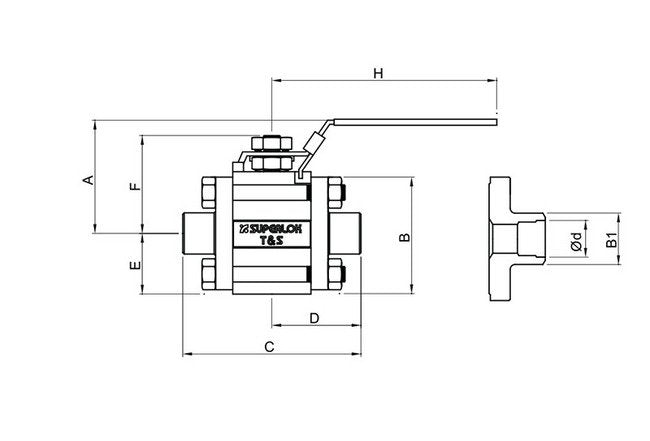

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
40.90 mm
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension B1
48.3 mm
Technical Specs Dimension C
113.2 mm
Technical Specs Dimension D
56.60 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
1-1/2 in. Butt Weld
Technical Specs Flow Coefficients Cv
100
Technical Specs Orifice Size
28.6 mm | 1.125 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
40
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
