SWB 320 Series 1.25 Inch Swing-Out Ball Valve
SWB 320 Series 1.25 Inch Swing-Out Ball Valve
SKU:SWB-3e2a09
High-performance 1.25in Swing-Out Ball Valve for industrial use. Pressure rated at 3000 psig. Reliable and durable design.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SWB 320 Series 1.25 Inch Swing-Out Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.25 Inch Swing-Out Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

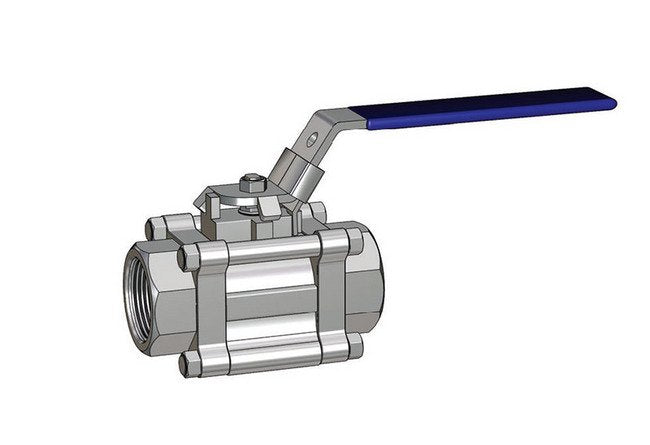

The SWB 320 Series 1.25 Inch Swing-Out Ball Valve is a high-performance valve designed for industrial applications. With a pressure rating of 3000 psig and a temperature range from -20 to 450°F, this valve ensures reliable operation under varying conditions. Its 1-1/2 in. female PT end connections and 31.8mm orifice size make it versatile for different piping systems. Each valve undergoes rigorous testing to meet industry standards, ensuring minimal leak rates and optimal performance. Experience durability and efficiency with the SWB 320 Series Swing-Out Ball Valve.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

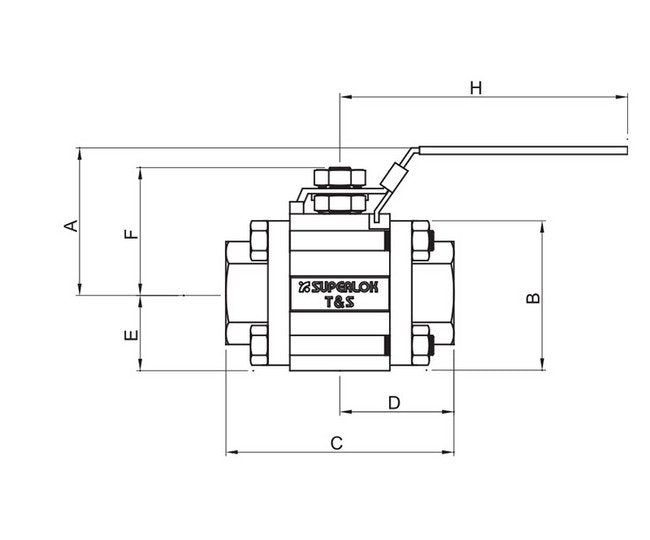

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension C
112.2 mm
Technical Specs Dimension D
55.6 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
1-1/2 in. Female Port Thread (PT)
Technical Specs Flow Coefficients Cv
100
Technical Specs Orifice Size
31.8 mm | 1.25 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
