SWB 320 Series 1.25" Orifice Swing-Out Ball Valve
SWB 320 Series 1.25" Orifice Swing-Out Ball Valve
SKU:SWB-8124ad
SWB 320 Series 1.25" Orifice Swing-Out Ball Valve - Reliable, high-performance valve for industrial applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SWB 320 Series 1.25" Orifice Swing-Out Ball Valve
$189.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.25" Orifice Swing-Out Ball Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

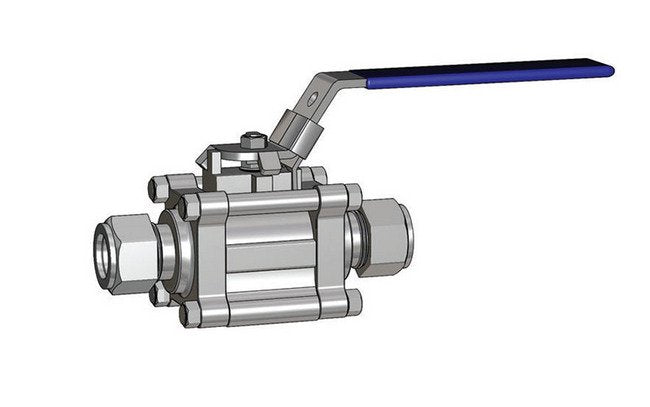

The SWB 320 Series 1.25 Inch Orifice Swing-Out Ball Valve is designed for optimal performance in industrial applications. With a pressure rating of 3000 psig, temperature range from -20 to 450 °F, and a Cv of 100, this valve ensures reliable operation. Tested to stringent standards, including hydrostatic shell testing at 1.5 times the working pressure, it guarantees leak-free performance. The 1-1/2 inch SUPERLOK® end connections provide secure fittings, making it ideal for various fluid control systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

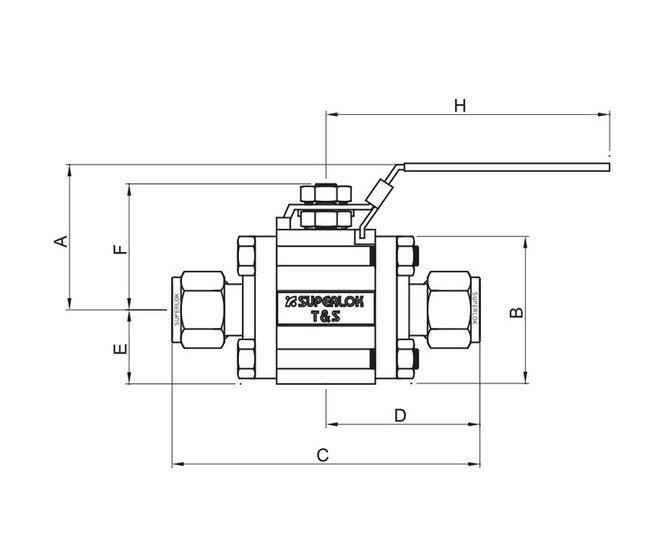

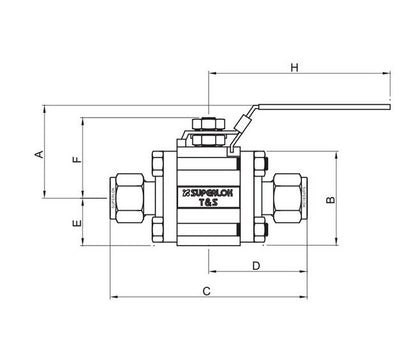

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
111 mm
Technical Specs Dimension C
192.6 mm
Technical Specs Dimension D
96.3 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
1-1/2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
100
Technical Specs Orifice Size
31.8 mm | 1.25 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
