SWB 320 Series 1.5
SWB 320 Series 1.5
SKU:SWB-130a40
High-performance SWB 320 Series Swing-Out Ball Valve for industrial applications, with 1.5
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
SWB 320 Series 1.5
$499.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.5
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

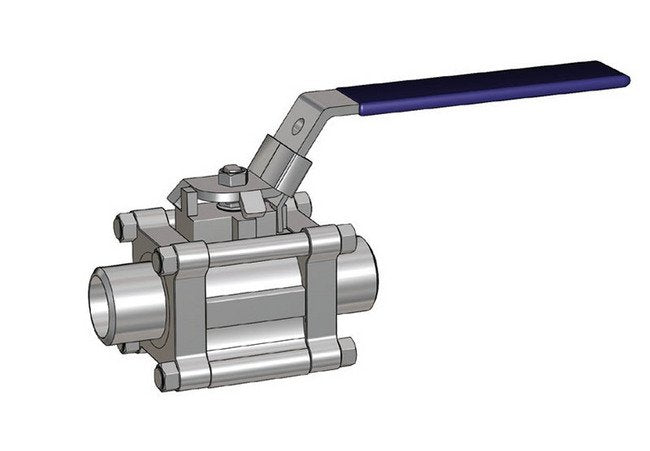

The SWB 320 Series Swing-Out Ball Valve with a 1.5-inch orifice size and 52.50-inch diameter offers exceptional performance in demanding industrial applications. With a pressure rating of 3000 psig and a temperature range from -20 to 450 ºF, this valve ensures reliable operation under varying conditions. Its 2-inch butt weld end connections provide secure sealing, while the hydrostatic shell test verified at 1.5 times the working pressure guarantees safety. Ideal for government and institutional use, this valve meets stringent procurement standards, making it a top choice for critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

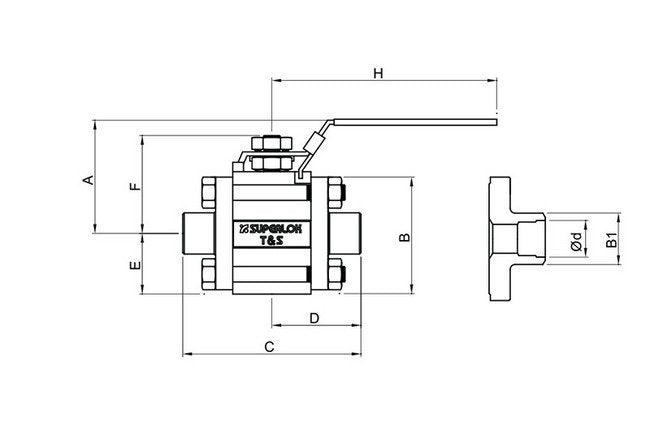

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
52.50 mm
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
88.1 mm
Technical Specs Dimension B1
60.30 mm
Technical Specs Dimension C
123.4 mm
Technical Specs Dimension D
61.70 mm
Technical Specs Dimension E
44.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
2 in. Butt Weld
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
40
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
