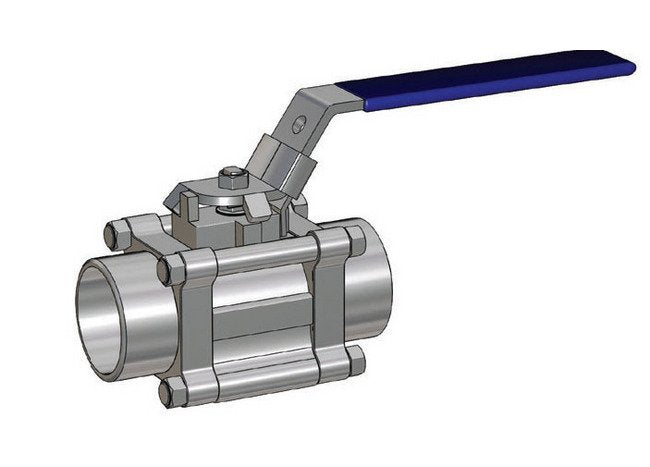

SWB 320 Series 1.5 Inch Swing-Out Ball Valve
SWB 320 Series 1.5 Inch Swing-Out Ball Valve
SKU:SWB-1a6c30
High-performance SWB 320 Series 1.5 Inch Ball Valve for precise flow control in industrial settings.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
SWB 320 Series 1.5 Inch Swing-Out Ball Valve
$289.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.5 Inch Swing-Out Ball Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series 1.5 Inch Swing-Out Ball Valve is a premium solution for demanding industrial applications. With an orifice size of 1.5 inches and pressure rating up to 3000 psig, this valve ensures reliable and precise control of flow. Featuring durable construction and tested to meet stringent quality standards, it offers exceptional performance even in extreme temperatures ranging from -20 to 450 °F. The 2-inch Socket Weld end connections provide secure integration, while the swing-out design facilitates easy maintenance, making it a versatile and efficient choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

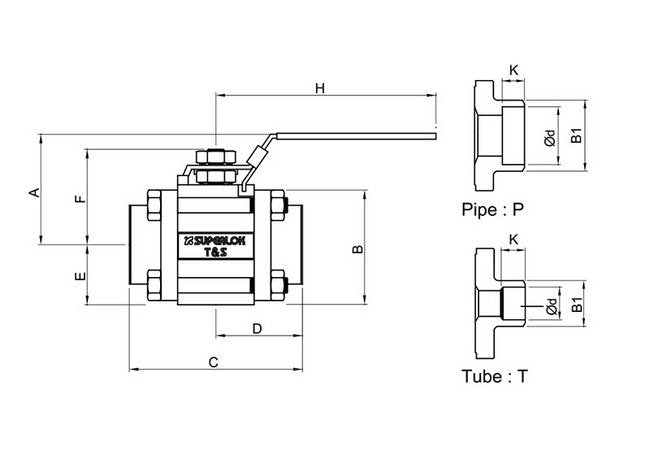

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
51.1 mm
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
88.1 mm
Technical Specs Dimension B1
70.10 mm
Technical Specs Dimension C
125.4 mm
Technical Specs Dimension D
62.7 mm
Technical Specs Dimension E
44.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs Dimension K
19.1 mm
Technical Specs End Connections
2 in. Sokect Weld
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
