SWB 320 Series 1.5 Inch Swing-Out Ball Valve
SWB 320 Series 1.5 Inch Swing-Out Ball Valve
SKU:SWB-7693e3
Reliable SWB 320 Series 1.5 Inch Swing-Out Ball Valve for industrial use with 3000 psig pressure rating, -20 to 450°F temperature range, and precise flow control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SWB 320 Series 1.5 Inch Swing-Out Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.5 Inch Swing-Out Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

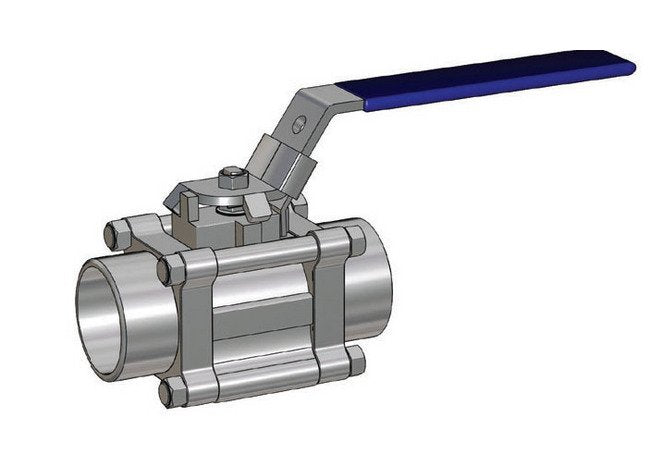

The SWB 320 Series 1.5 Inch Swing-Out Ball Valve is a robust solution for industrial applications, featuring a 61.2-inch diameter d and 2-inch Socket Weld end connections. With a pressure rating of 3000 psig and a temperature range of -20 to 450°F, this valve ensures reliable performance under varying conditions. Its 1.5-inch orifice size and flow coefficient of 130 optimize fluid control. Tested to rigorous standards, including nitrogen and hydrostatic shell tests, this valve offers exceptional durability and leakage prevention. Trust in its dimensions and quality for your critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

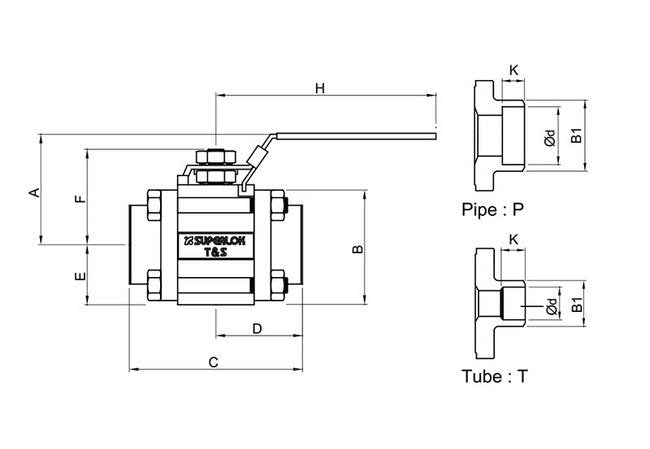

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
61.2 mm
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
86.8 mm
Technical Specs Dimension B1
75.10 mm
Technical Specs Dimension C
125.4 mm
Technical Specs Dimension D
62.7 mm
Technical Specs Dimension E
43.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs Dimension K
16.0 mm
Technical Specs End Connections
2 in. Sokect Weld
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
