SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
SKU:SWB-8041bf
High-performance SWB 320 Series swing-out ball valve for precise flow control in industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
$349.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

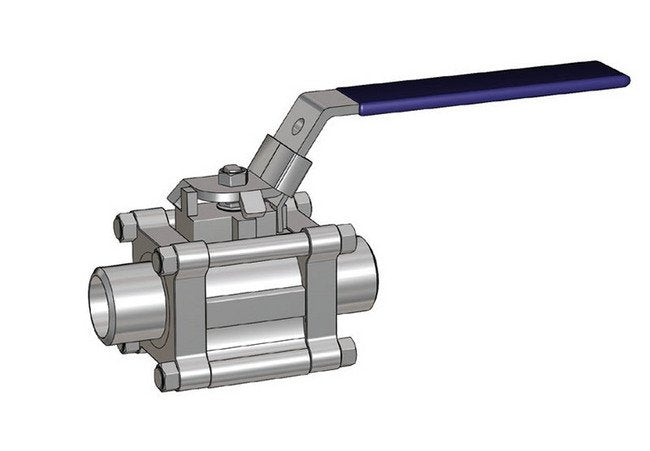

The SWB 320 Series 1.5 Inch Orifice Swing-Out Ball Valve is engineered for exceptional performance in demanding environments. With a pressure rating of 3000 psig and a wide temperature range of -20 to 450°F, this valve ensures reliable operation. Featuring 2-inch Butt Weld end connections and a precise orifice size of 1.5 inches, it offers efficient flow control. Each valve undergoes rigorous testing to guarantee minimal leakage and superior quality. Dimensions are designed for optimal fit and easy installation, making it a top choice for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

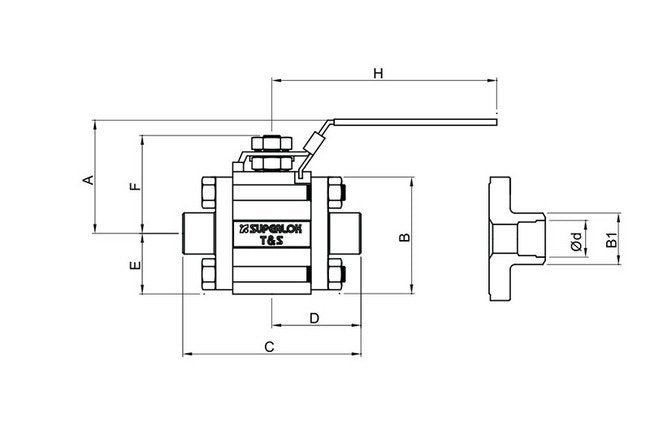

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
49.30 mm
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
88.1 mm
Technical Specs Dimension B1
60.30 mm
Technical Specs Dimension C
129.6 mm
Technical Specs Dimension D
64.80 mm
Technical Specs Dimension E
44.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
2 in. Butt Weld
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
80
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
