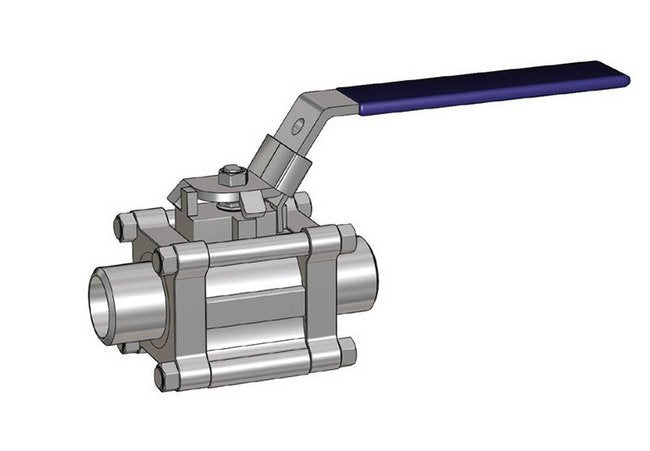

SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
SKU:SWB-09b532
High-performance 1.5" Orifice Swing-Out Ball Valve for industrial applications. Pressure rating 3000 psig, temperature range -20 to 450 °F.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
$399.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series 1.5" Orifice Swing-Out Ball Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series 1.5 Inch Orifice Swing-Out Ball Valve is a high-quality valve designed for robust performance in demanding industrial applications. With an orifice size of 1.5 inches and butt weld end connections, it offers a pressure rating of 3000 psig and a temperature range from -20 to 450 °F. This valve undergoes stringent testing to ensure reliability, with hydrostatic shell tests performed at 1.5 times the working pressure. Dimensions and drawings are precise, meeting industry standards for accuracy and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

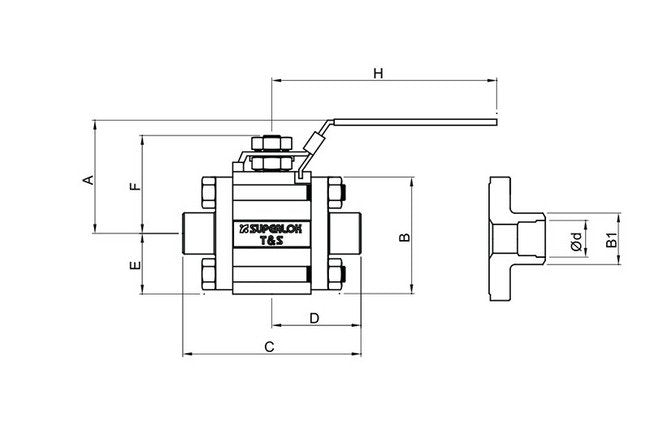

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
54.80 mm
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
88.1 mm
Technical Specs Dimension B1
60.30 mm
Technical Specs Dimension C
121.4 mm
Technical Specs Dimension D
60.70 mm
Technical Specs Dimension E
44.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
2 in. Butt Weld
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
10
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
