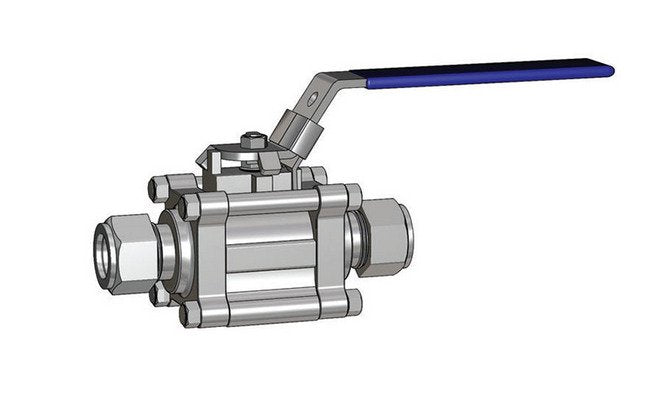

SWB 320 Series 1.5" Swing-Out Ball Valve with 2" SUPERLOK End Connections

SWB 320 Series 1.5" Swing-Out Ball Valve with 2" SUPERLOK End Connections

SWB-762eeb

Premium 1.5" Swing-Out Ball Valve with 2" SUPERLOK Connections, high pressure and temp rating, ideal for demanding applications.

$249.99
$249.99
Sale

Initiate Order

SWB 320 Series 1.5" Swing-Out Ball Valve with 2" SUPERLOK End Connections

SWB 320 Series 1.5" Swing-Out Ball Valve with 2" SUPERLOK End Connections

$249.99

Quantity: 1

Claim Your Seller Account

SWB 320 Series 1.5" Swing-Out Ball Valve with 2" SUPERLOK End Connections

SWB 320 Series 1.5" Swing-Out Ball Valve with 2" SUPERLOK End Connections

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SWB 320 Series Swing-Out Ball Valve boasts a 1.5" orifice size, pressure rating of 3000 psig, and a temperature range from -20 to 450°F. Featuring 2" SUPERLOK end connections, this valve ensures reliable performance and easy installation. Each valve undergoes rigorous nitrogen and hydrostatic testing, meeting high industry standards for quality and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note

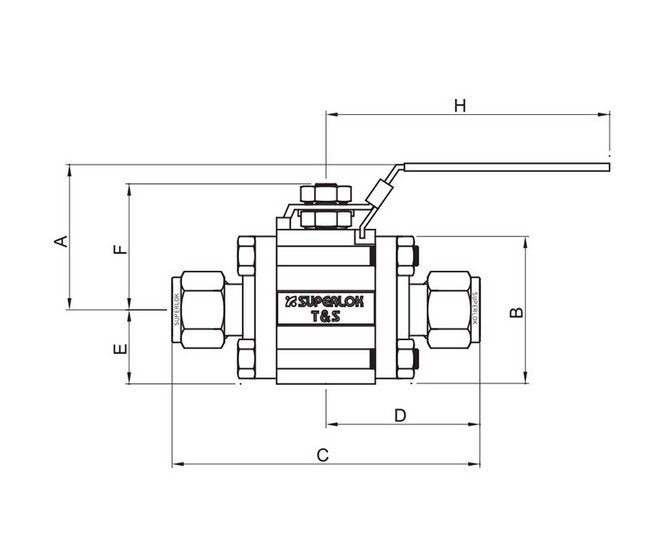

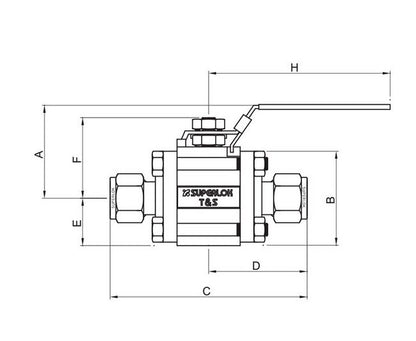

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
88.1 mm
Technical Specs Dimension C
252.0 mm
Technical Specs Dimension D
126.0 mm
Technical Specs Dimension E
44.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
