SWB 320 Series Swing-Out Ball Valve
SWB 320 Series Swing-Out Ball Valve
SKU:SWB-f1f3ec
High-performance SWB 320 Series Swing-Out Ball Valve with 0.516in orifice and robust construction for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve
$299.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

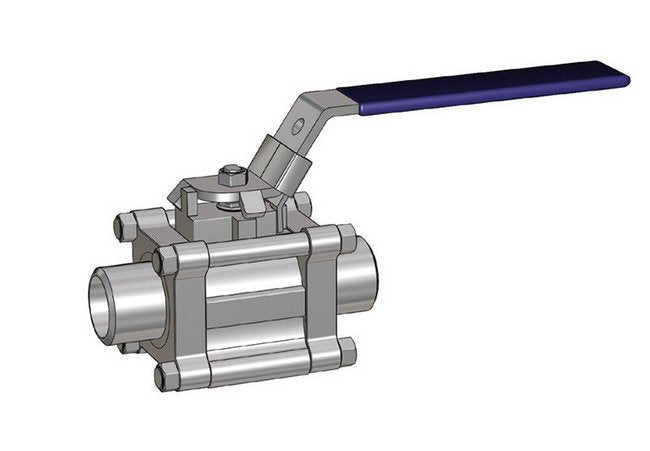

The SWB 320 Series Swing-Out Ball Valve with a 0.516 inch orifice size and 15.80 inch diameter is engineered for optimal performance in high-pressure environments. With a pressure rating of 3000 psig and a temperature range of -20 to 450 ºF, this valve ensures reliable operation under extreme conditions. The 1/2 inch butt weld end connections provide secure sealing, while the swing-out design allows for easy maintenance. Tested to stringent standards, this valve guarantees minimal leaks and superior durability, making it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

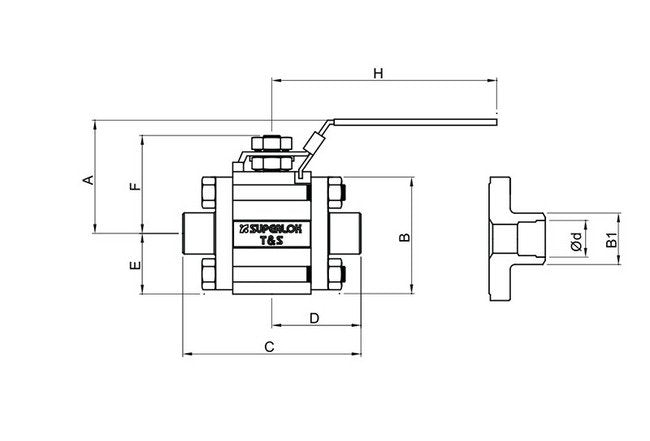

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
15.80 mm
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension B1
21.30 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
1/2 in. Butt Weld
Technical Specs Flow Coefficients Cv
15.0
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
40
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
