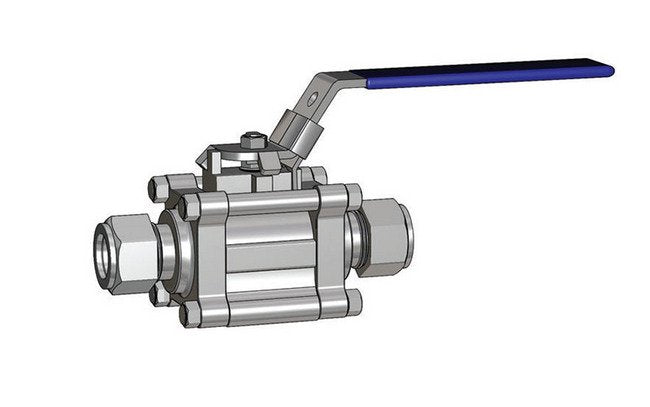

The SWB 320 Series Swing-Out Ball Valve features a 0.188-inch orifice size and 1/4-inch SUPERLOK end connections, ensuring reliable performance under pressure. With a pressure rating of 3000 psig and a temperature range of -20 to 450°F, this valve is meticulously tested for leak resistance and durability. Designed for precision and longevity, this valve is ideal for industrial, governmental, and institutional applications.
Product Specifications
Note Note

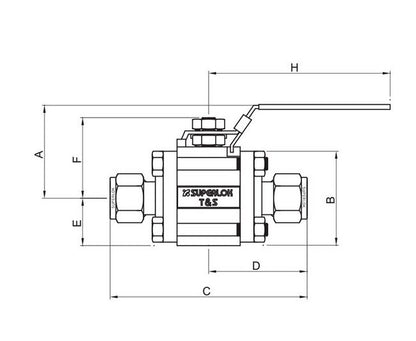

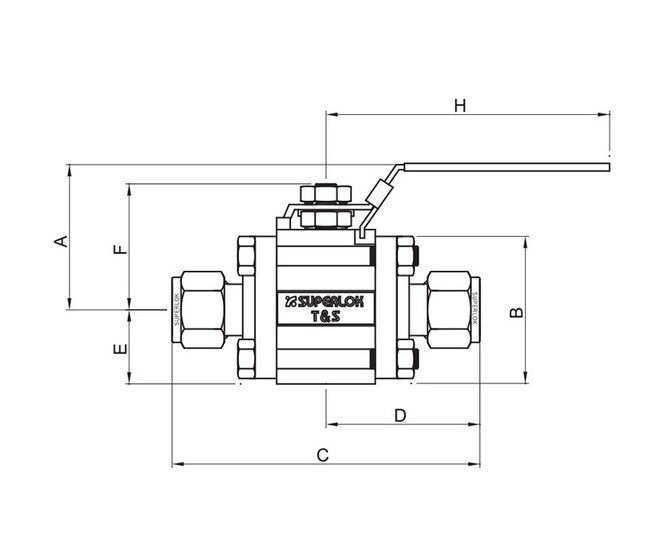

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
80.8 mm
Technical Specs Dimension D
40.40 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
4.8 mm | 0.188 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
