SWB 320 Series Swing-Out Ball Valve - 0.188" Orifice, 9.20" Diameter, 1/4" Butt Weld
SWB 320 Series Swing-Out Ball Valve - 0.188" Orifice, 9.20" Diameter, 1/4" Butt Weld
SKU:SWB-6f69fa
SWB 320 Series Swing-Out Ball Valve with 0.188" Orifice, 1/4" Butt Weld, & 3000 psig Rating
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.188" Orifice, 9.20" Diameter, 1/4" Butt Weld
$189.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.188" Orifice, 9.20" Diameter, 1/4" Butt Weld
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

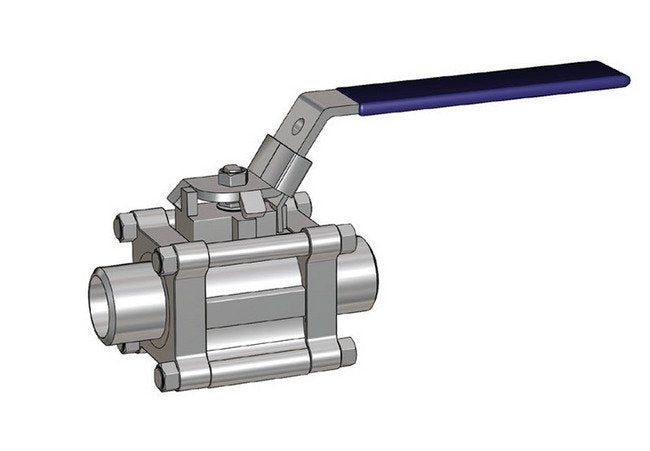

The SWB 320 Series Swing-Out Ball Valve is a high-performance solution with a 0.188-inch orifice size, 3000 psig pressure rating, and -20 to 450°F temperature range. Featuring 1/4-inch butt weld end connections and durable construction, this valve ensures reliable operation in demanding industrial settings. Each valve is meticulously tested for leakage and undergoes hydrostatic shell testing to guarantee optimal performance and safety. With compliance to federal procurement standards and industry certifications, this valve meets the stringent requirements of government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

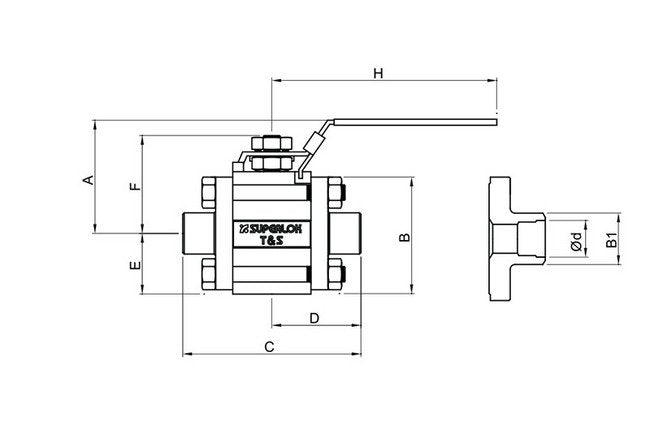

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
9.20 mm
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension B1
13.70 mm
Technical Specs Dimension C
52.4 mm
Technical Specs Dimension D
26.20 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/4 in. Butt Weld
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
4.8 mm | 0.188 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
40
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
