SWB 320 Series Swing-Out Ball Valve - 0.188in Orifice, 7.70in Diameter
SWB 320 Series Swing-Out Ball Valve - 0.188in Orifice, 7.70in Diameter
SKU:SWB-a84cdc
High-performance SWB 320 Series Swing-Out Ball Valve for precise control in demanding conditions.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.188in Orifice, 7.70in Diameter
$289.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.188in Orifice, 7.70in Diameter
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

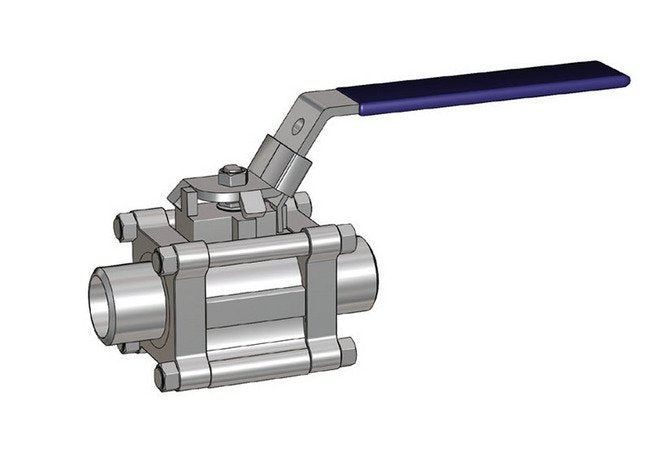

The SWB 320 Series 0.188in Orifice Swing-Out Ball Valve is engineered for precision performance in demanding environments. With a pressure rating of 3000 psig and a temperature range of -20 to 450°F, this valve ensures reliable operation. Tested meticulously for leak prevention and with optional hydrostatic shell testing, it meets stringent industry standards. Its compact design with 1/4in Butt Weld End Connections makes installation seamless, catering to both consumer and institutional requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

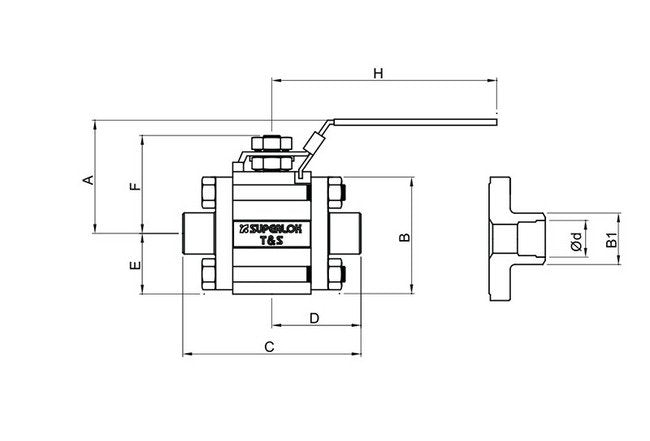

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
7.70 mm
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension B1
13.70 mm
Technical Specs Dimension C
52.4 mm
Technical Specs Dimension D
26.20 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/4 in. Butt Weld
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
4.8 mm | 0.188 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
80
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
