SWB 320 Series Swing-Out Ball Valve 0.188in Orifice Size
SWB 320 Series Swing-Out Ball Valve 0.188in Orifice Size
SKU:SWB-2c0343
SWB 320 Series Swing-Out Ball Valve with 0.188in Orifice, high pressure rating, and -20 to 450 °F temperature range, ideal for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve 0.188in Orifice Size
$99.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve 0.188in Orifice Size
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

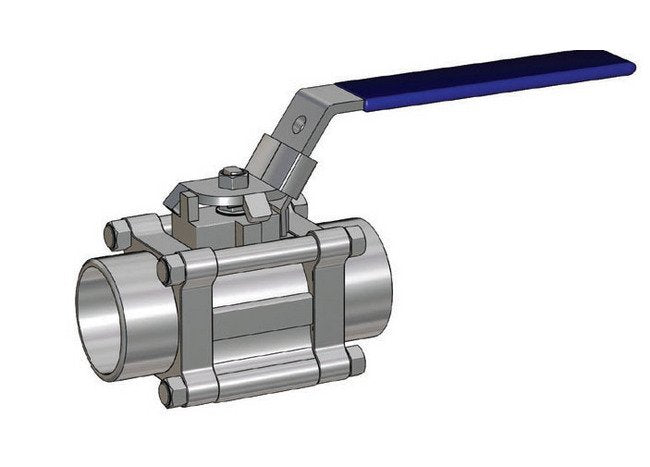

The SWB 320 Series Swing-Out Ball Valve features a precise 0.188-inch orifice size, designed for high-pressure applications with a rating of 3000 psig. With a temperature range from -20 to 450 °F, this valve ensures reliable operation in various environments. The 1/4-inch socket weld end connections provide secure installation, and each valve undergoes rigorous nitrogen and hydrostatic testing to guarantee performance. Versatile and durable, this valve is ideal for industrial and institutional settings requiring compliance with stringent standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

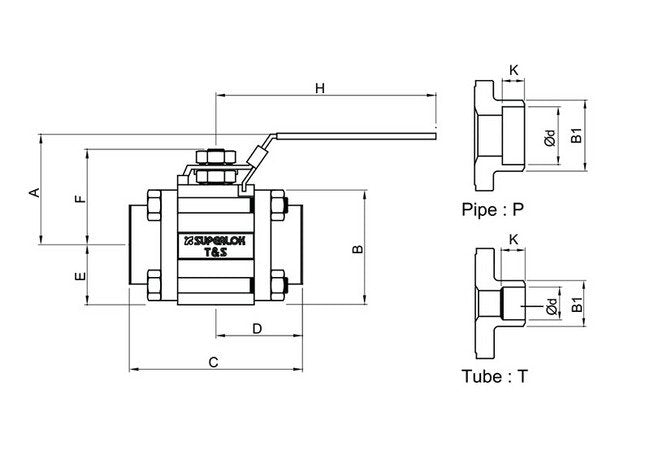

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
6.5 mm
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension B1
13.70 mm
Technical Specs Dimension C
55.4 mm
Technical Specs Dimension D
27.70 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs Dimension K
7.1 mm
Technical Specs End Connections
1/4 in. Socket Weld
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
4.8 mm | 0.188 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
