SWB 320 Series Swing-Out Ball Valve 0.281" Orifice, 1/4" Female PT End

SWB 320 Series Swing-Out Ball Valve 0.281" Orifice, 1/4" Female PT End

SWB-ea925e

High-performance SWB 320 Series Swing-Out Ball Valve for precise flow control in demanding conditions.

$129.99
$129.99
Sale

Initiate Order

SWB 320 Series Swing-Out Ball Valve 0.281" Orifice, 1/4" Female PT End

SWB 320 Series Swing-Out Ball Valve 0.281" Orifice, 1/4" Female PT End

$129.99

Quantity: 1

Claim Your Seller Account

SWB 320 Series Swing-Out Ball Valve 0.281" Orifice, 1/4" Female PT End

SWB 320 Series Swing-Out Ball Valve 0.281" Orifice, 1/4" Female PT End

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

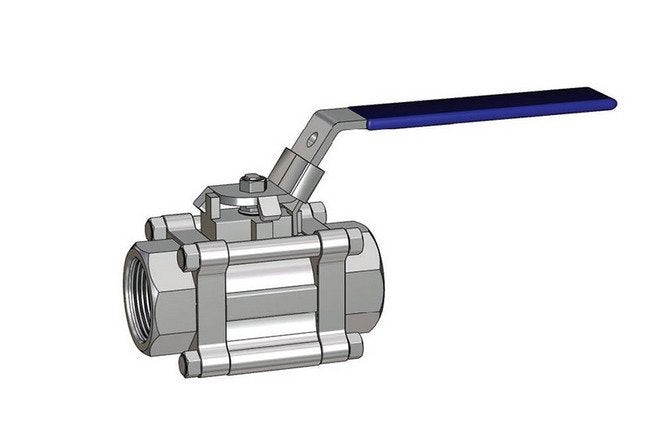

The SWB 320 Series Swing-Out Ball Valve features a 0.281" orifice size and 1/4" female PT end connections, designed for precision and durability. With a pressure rating of 3000 psig and a temperature range from -20 to 450°F, this valve ensures reliable performance under demanding conditions. Each valve undergoes rigorous nitrogen and hydrostatic testing to guarantee a leak-free operation. Built to meet stringent industry standards, this valve offers exceptional quality and performance for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note

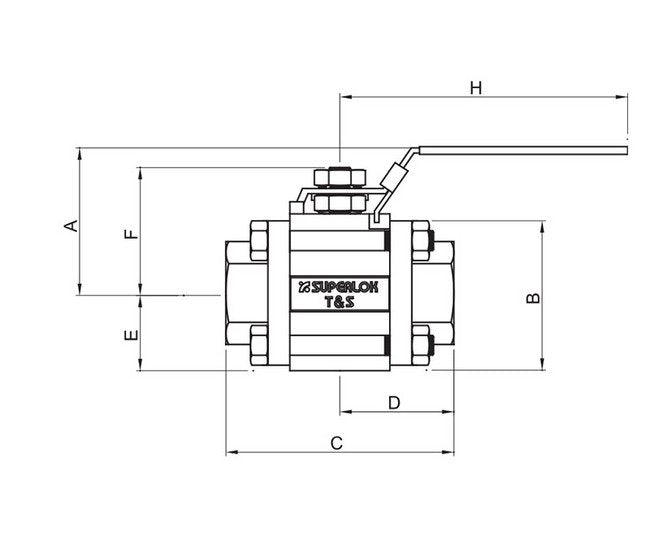

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
55.4 mm
Technical Specs Dimension D
27.70 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/4 in. Female Port Thread (PT)
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
