SWB 320 Series Swing-Out Ball Valve - 0.281" Orifice, 10.70" Diameter, 3/8" Butt Weld
SWB 320 Series Swing-Out Ball Valve - 0.281" Orifice, 10.70" Diameter, 3/8" Butt Weld
SKU:SWB-4a1568
High-performance SWB 320 Series Swing-Out Ball Valve - Ideal for precision industries. Pressure rated at 3000 psig, temperature range -20 to 450°F.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.281" Orifice, 10.70" Diameter, 3/8" Butt Weld
$129.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.281" Orifice, 10.70" Diameter, 3/8" Butt Weld
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

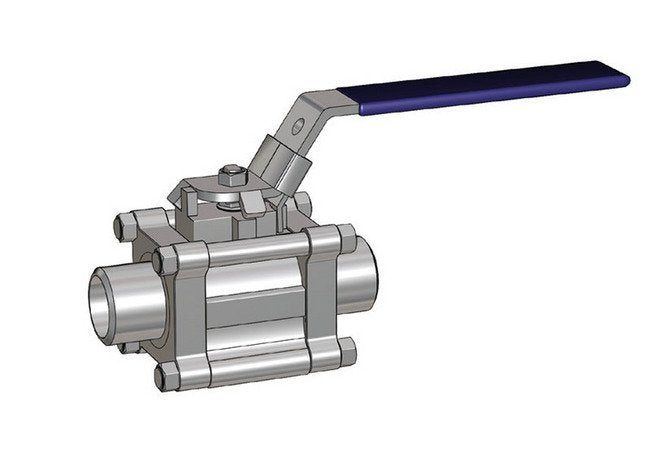

The SWB 320 Series 0.281 Inch Orifice Swing-Out Ball Valve is a high-performance valve designed for industries requiring precision and durability. With a pressure rating of 3000 psig and temperature range of -20 to 450°F, it ensures reliable operation in diverse environments. Tested rigorously for leak prevention and hydrostatic shell strength, this valve guarantees safety and efficiency. Its 3/8 inch Butt Weld End Connections offer secure sealing, while the compact design with precise dimensions ensures seamless integration. Trust the SWB 320 Series for superior performance in critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

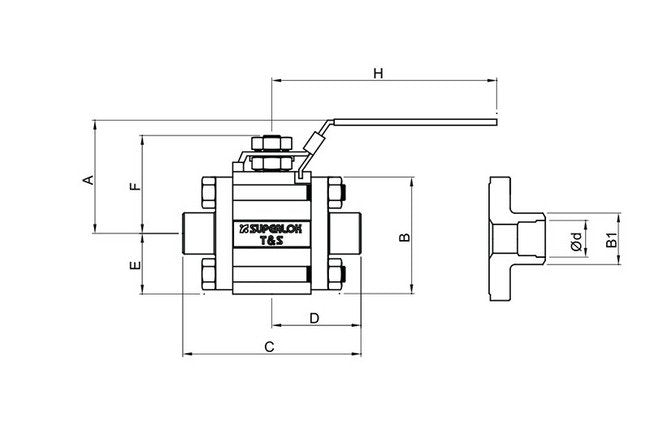

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
10.70 mm
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension B1
17.10 mm
Technical Specs Dimension C
52.4 mm
Technical Specs Dimension D
26.20 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
3/8 in. Butt Weld
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
80
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
