SWB 320 Series Swing-Out Ball Valve, 0.411" Orifice, 13.90" Diameter, 1/2" Butt Weld
SWB 320 Series Swing-Out Ball Valve, 0.411" Orifice, 13.90" Diameter, 1/2" Butt Weld
SKU:SWB-05233e
SWB 320 Series Swing-Out Ball Valve with 0.411" Orifice and 13.90" Diameter, ideal for industrial applications.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve, 0.411" Orifice, 13.90" Diameter, 1/2" Butt Weld
$269.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve, 0.411" Orifice, 13.90" Diameter, 1/2" Butt Weld
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

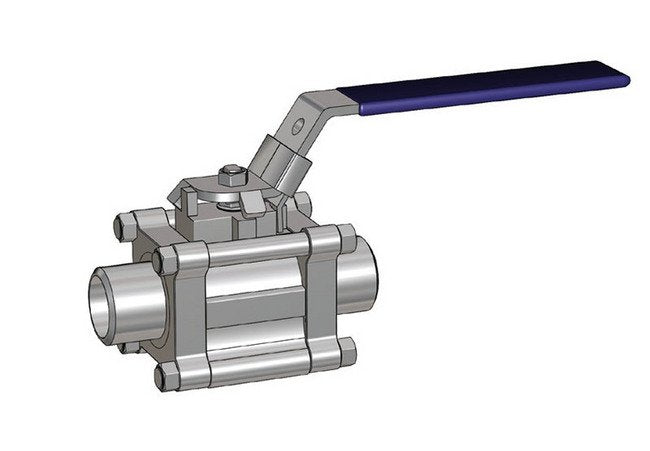

The SWB 320 Series Swing-Out Ball Valve offers a reliable solution for industrial fluid control. With a 0.411-inch orifice size, 3000 psig pressure rating, and -20 to 450 °F temperature range, this valve is suitable for diverse applications. Tested to rigorous standards, it ensures tight seals and optimal performance. The 1/2-inch butt weld end connections provide secure installation, meeting industry specifications for stability and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

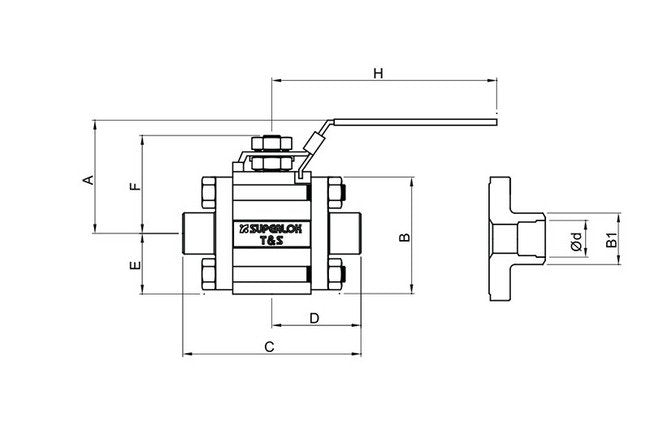

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
13.90 mm
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension B1
21.30 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
1/2 in. Butt Weld
Technical Specs Flow Coefficients Cv
7.5
Technical Specs Orifice Size
10.4 mm | 0.411 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
80
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
