SWB 320 Series Swing-Out Ball Valve, 0.516 in Orifice, 19.2 in Diameter
SWB 320 Series Swing-Out Ball Valve, 0.516 in Orifice, 19.2 in Diameter
SKU:SWB-56ac67
High-performance SWB 320 Series Ball Valve, 0.516in Orifice, 3000 psig, -20 to 450°F
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve, 0.516 in Orifice, 19.2 in Diameter
$249.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve, 0.516 in Orifice, 19.2 in Diameter
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

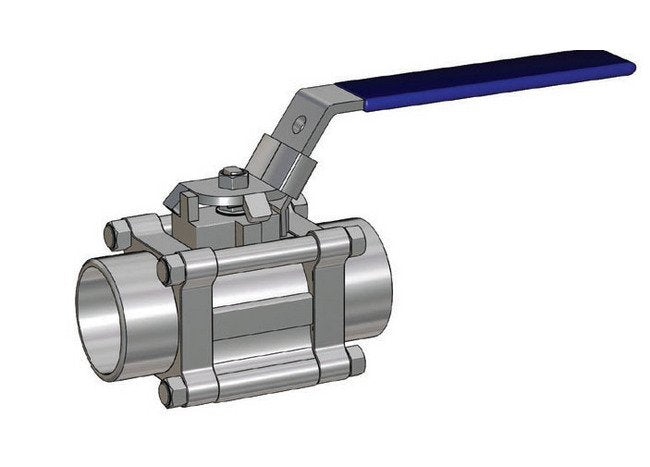

The SWB 320 Series Swing-Out Ball Valve is engineered for precision and durability, featuring a 0.516 inch orifice size and 19.2 inch diameter. With a pressure rating of 3000 psig and a temperature range of -20 to 450°F, this valve ensures reliable performance in diverse applications. Tested rigorously to meet industry standards, it offers secure sealing and efficient flow control. Ideal for institutional buyers seeking quality valves that exceed expectations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

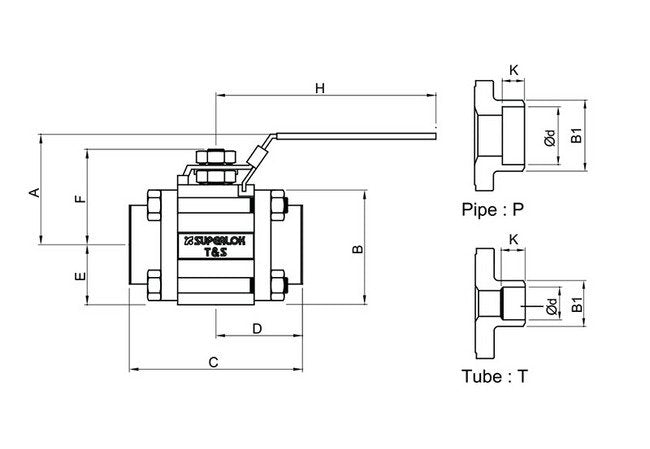

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
19.2 mm
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension B1
26.70 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs Dimension K
11.2 mm
Technical Specs End Connections
3/4 in. Socket Weld
Technical Specs Flow Coefficients Cv
13.6
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
