SWB 320 Series Swing-Out Ball Valve - 0.516 Inch Orifice
SWB 320 Series Swing-Out Ball Valve - 0.516 Inch Orifice
SKU:SWB-79e530
SWB 320 Series Swing-Out Ball Valve: 0.516-inch orifice, 3000 psig pressure rating, -20 to 450°F temperature range. Reliable and durable for institutional use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.516 Inch Orifice
$129.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.516 Inch Orifice
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

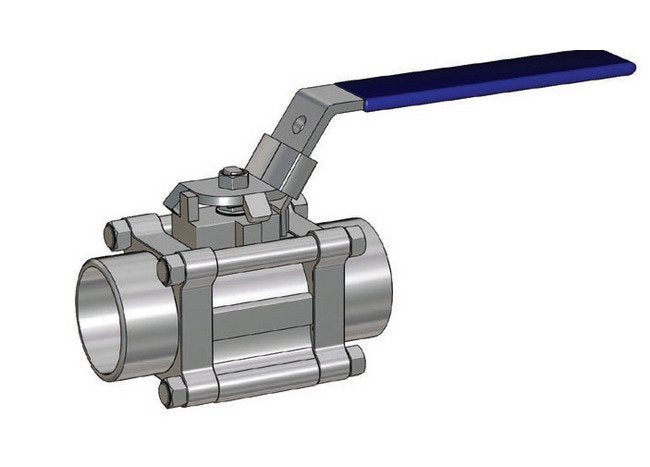

The SWB 320 Series Swing-Out Ball Valve features a 0.516 inch orifice size, designed for high-pressure applications with a pressure rating of 3000 psig. With a wide temperature range from -20 to 450°F, this valve ensures optimal performance in various environments. Its 1/2 inch socket weld end connections provide secure fittings, and each valve undergoes rigorous testing to guarantee reliability under demanding conditions. Ideal for government and institutional use, this valve combines precision engineering with exceptional durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

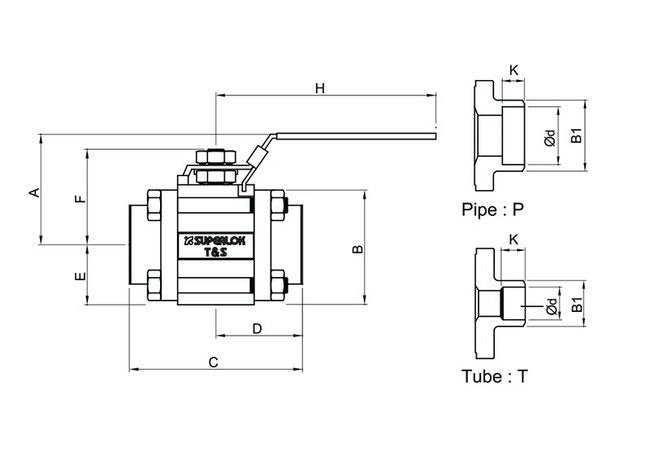

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
21.8 mm
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension B1
31.20 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs Dimension K
9.7 mm
Technical Specs End Connections
1/2 in. Socket Weld
Technical Specs Flow Coefficients Cv
15.0
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
