SWB 320 Series Swing-Out Ball Valve | 0.516" Orifice, 1/2" FNPT End
SWB 320 Series Swing-Out Ball Valve | 0.516" Orifice, 1/2" FNPT End
SKU:SWB-ce3f79
SWB 320 Series Swing-Out Ball Valve with 0.516" Orifice and 1/2" FNPT End Connections - Ideal for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve | 0.516" Orifice, 1/2" FNPT End
$99.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve | 0.516" Orifice, 1/2" FNPT End
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

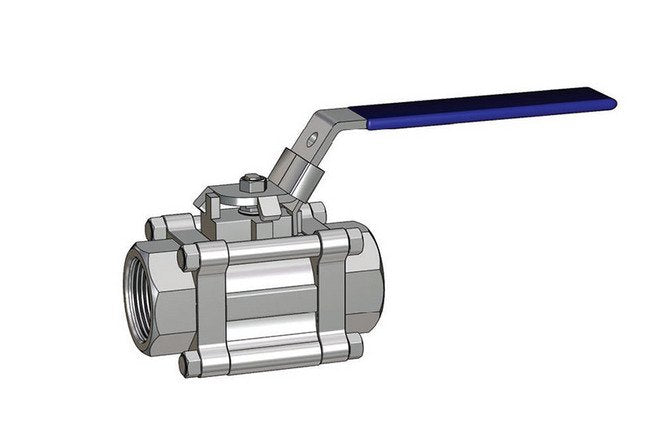

The SWB 320 Series Swing-Out Ball Valve features a 0.516-inch orifice size and 1/2-inch Female National Pipe Thread (FNPT) end connections. With a pressure rating of 3000 psig and a temperature range of -20 to 450°F, this valve ensures reliable performance in varied conditions. Tested to the highest standards, each valve undergoes rigorous nitrogen and hydrostatic shell tests. Its compact design and durable construction make it ideal for industrial settings. Stay ahead with this versatile, high-performing swing-out ball valve.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

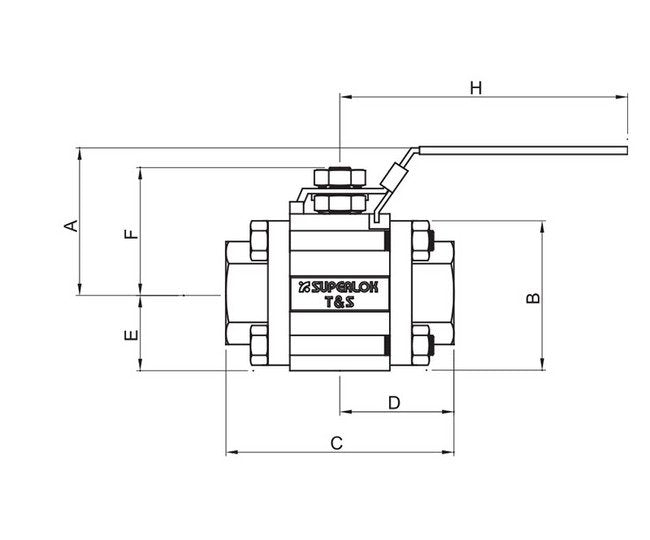

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
12
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
