SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 17.10" Diameter, 1/2" Butt Weld
SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 17.10" Diameter, 1/2" Butt Weld
SKU:SWB-cfe489
Reliable SWB 320 Series Swing-Out Ball Valve for precise flow control in industrial applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 17.10" Diameter, 1/2" Butt Weld
$289.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 17.10" Diameter, 1/2" Butt Weld
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

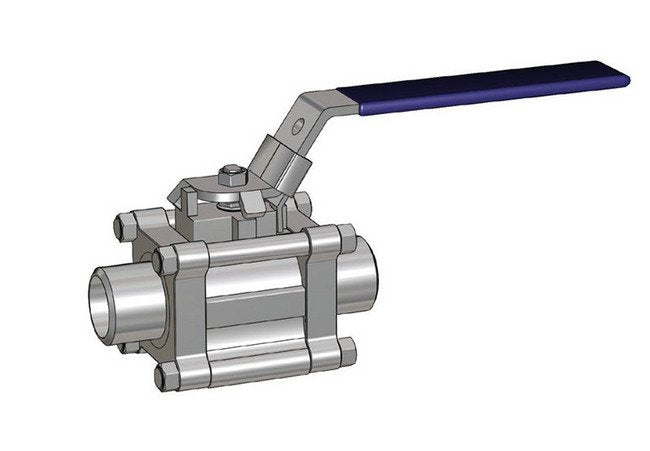

The SWB 320 Series Swing-Out Ball Valve offers superior performance in demanding industrial applications. With a 0.516 inch orifice size, 17.10 inch diameter, and 1/2 inch butt weld end connections, this valve ensures reliable flow control. Operating at a pressure rating of 3000 psig and a temperature range of -20 to 450 ºF, it meets stringent industry standards for durability and performance. Each valve undergoes rigorous testing to ensure leak-free operation, making it ideal for government and institutional procurement needs.
Product Specifications
Note Note

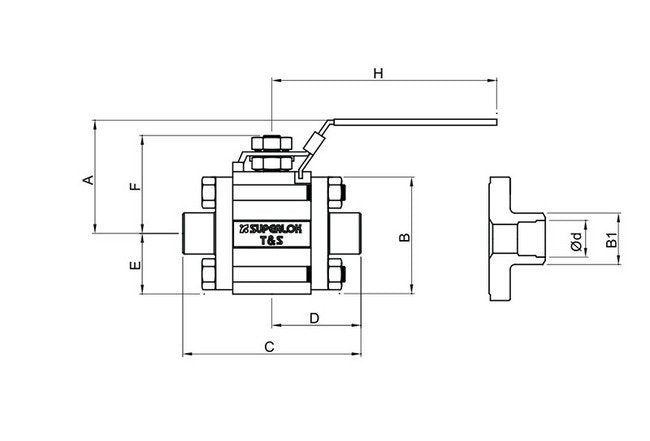

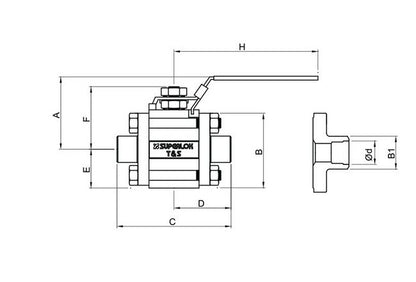

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
17.10 mm
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension B1
21.30 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
1/2 in. Butt Weld
Technical Specs Flow Coefficients Cv
15.0
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
10
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
