SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 18.80" Diameter, 3/4" Butt Weld
SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 18.80" Diameter, 3/4" Butt Weld
SKU:SWB-ffff93

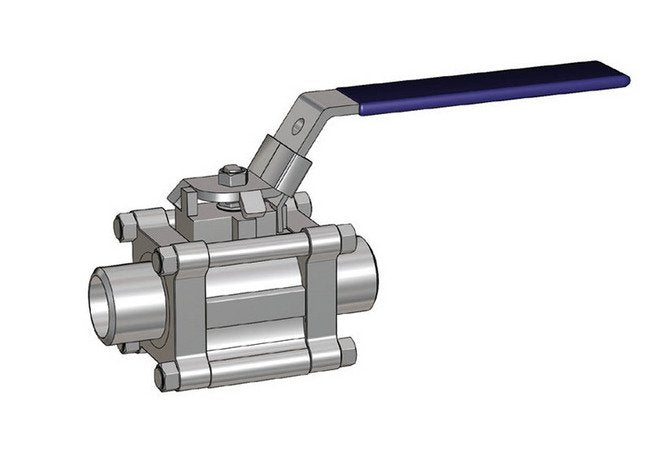

SWB 320 Series Swing-Out Ball Valve with 0.516" Orifice, 18.80" Diameter, 3/4" Butt Weld Connections
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 18.80" Diameter, 3/4" Butt Weld
$299.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.516" Orifice, 18.80" Diameter, 3/4" Butt Weld
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve is designed with a 0.516-inch orifice size and 18.80-inch diameter, featuring 3/4-inch butt weld end connections for secure installations. With a pressure rating of 3000 psig at 100°F and a temperature range of -20 to 450°F, this valve ensures reliable performance in diverse industrial applications. Each valve undergoes stringent testing, meeting leak rate requirements and optional hydrostatic shell tests. Experience precision engineering and exceptional durability with this valve that adapts to varying operational demands.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

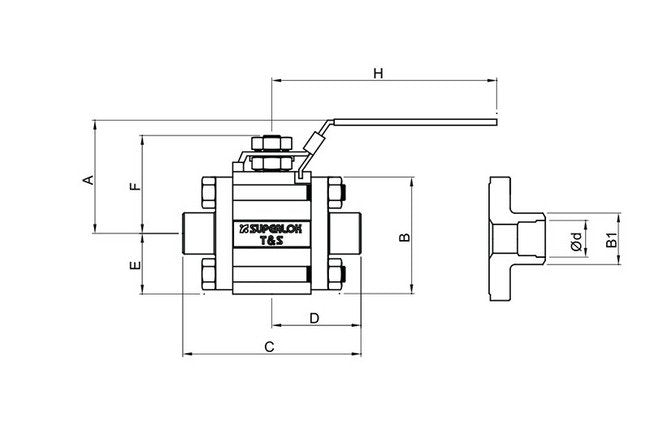

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
18.80 mm
Technical Specs Dimension A
64.8 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension B1
26.70 mm
Technical Specs Dimension C
68.9 mm
Technical Specs Dimension D
34.45 mm
Technical Specs Dimension E
22.25 mm
Technical Specs Dimension F
44.2 mm
Technical Specs Dimension H
111.0 mm
Technical Specs End Connections
3/4 in. Butt Weld
Technical Specs Flow Coefficients Cv
13.6
Technical Specs Orifice Size
13.1 mm | 0.516 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
80
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
