The SWB 320 Series Swing-Out Ball Valve features a 0.875-inch orifice size, ideal for high-pressure applications up to 3000 psig. With a temperature rating from -20 to 450 °F, this valve offers reliable performance in a wide range of environments. Its 3/4-inch butt weld end connections ensure secure installation, while the hydrostatic shell testing at 1.5 times the working pressure guarantees leak-free operation. Designed for durability and precision, this valve is a versatile choice for industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

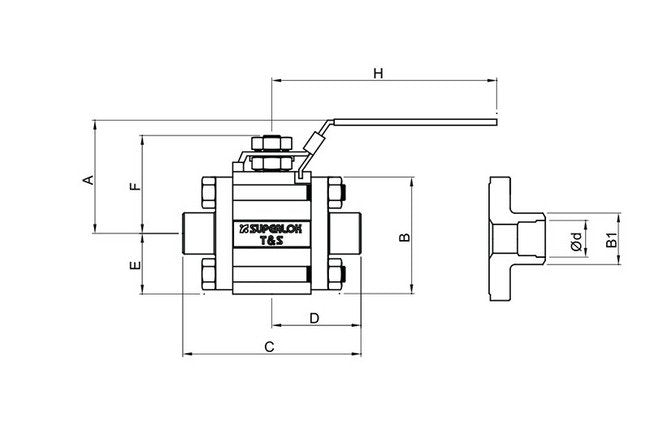

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
22.45 mm
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension B1
26.67 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.00 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
3/4 in. Butt Weld
Technical Specs Flow Coefficients Cv
36
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Schedule
10
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
