SWB 320 Series Swing-Out Ball Valve - 0.875" Orifice, 3/4" Female PT End
SWB 320 Series Swing-Out Ball Valve - 0.875" Orifice, 3/4" Female PT End
SKU:SWB-d2f38f
Premium SWB 320 Series Swing-Out Ball Valve - Optimal flow control, tested for reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.875" Orifice, 3/4" Female PT End
$129.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.875" Orifice, 3/4" Female PT End
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

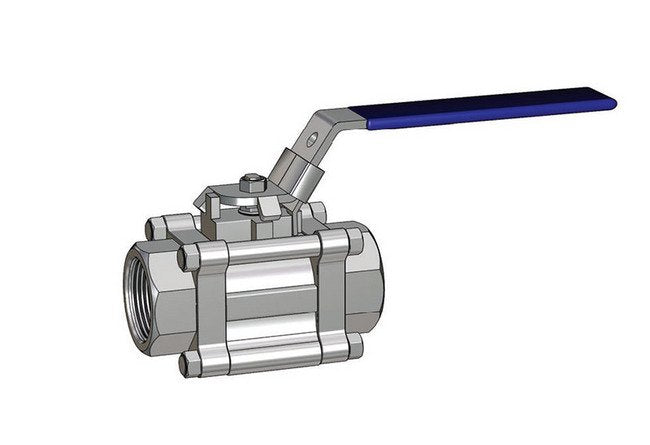

The SWB 320 Series Swing-Out Ball Valve is engineered for reliability and precision. With a pressure rating of 3000 psig and a temperature range from -20 to 450 °F, this valve ensures optimal performance in diverse conditions. The 0.875" orifice size and 3/4" female PT end connections enhance flow control efficiency. Each valve undergoes rigorous testing to meet industry standards, ensuring leak-free operation. Stay ahead with this durable, high-performance valve ideal for institutional and government procurement applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

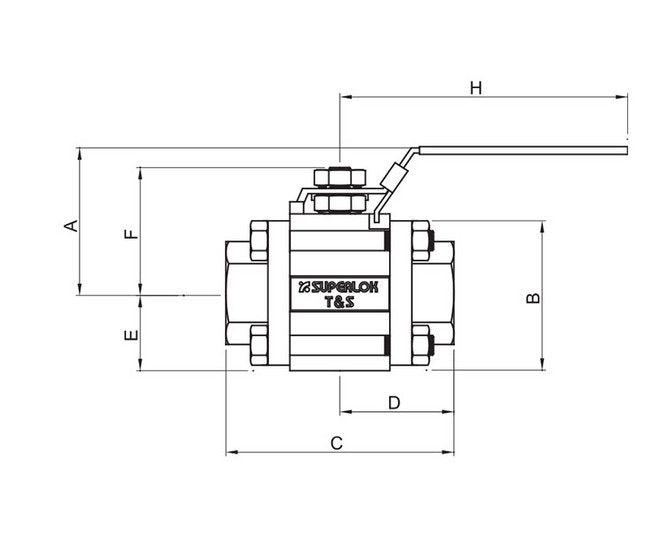

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.0 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
3/4 in. Female Port Thread (PT)
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
