SWB 320 Series Swing-Out Ball Valve - 0.875in Orifice, Female PT End Connections
SWB 320 Series Swing-Out Ball Valve - 0.875in Orifice, Female PT End Connections
SKU:SWB-6ae58b
Explore our SWB 320 Series Swing-Out Ball Valve for precise control and durability in high-pressure environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 0.875in Orifice, Female PT End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 0.875in Orifice, Female PT End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

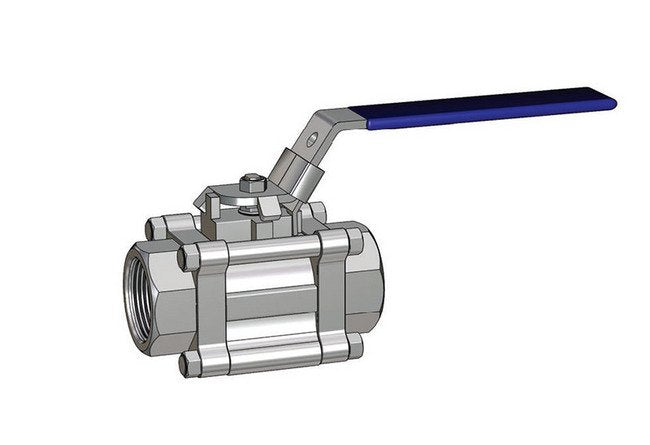

The SWB 320 Series Swing-Out Ball Valve features a precise 0.875-inch orifice size and durable 1-inch Female PT end connections, designed to withstand pressures up to 3000 psig. With a temperature rating from -20 to 450°F, this valve ensures reliable performance in various environments. Each valve undergoes rigorous testing to guarantee leak-free operation and can be optionally hydrostatic shell tested at 1.5 times the working pressure. Stay ahead with this versatile valve that combines functionality, reliability, and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

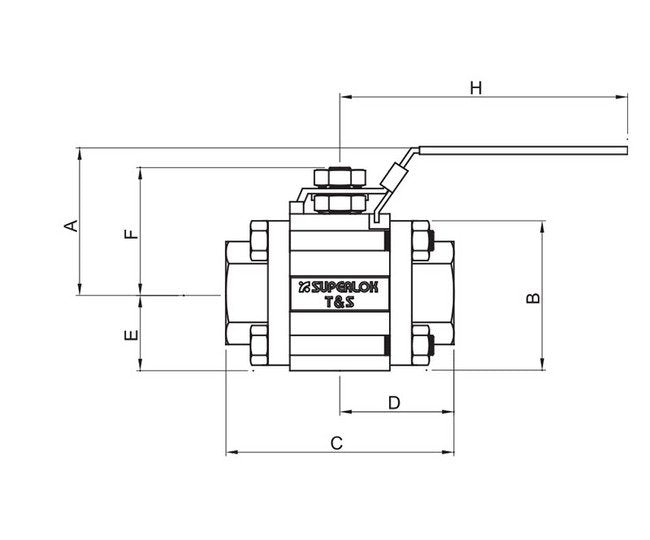

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
79.0 mm
Technical Specs Dimension B
62.0 mm
Technical Specs Dimension C
92.0 mm
Technical Specs Dimension D
46.0 mm
Technical Specs Dimension E
31.0 mm
Technical Specs Dimension F
61.9 mm
Technical Specs Dimension H
149.4 mm
Technical Specs End Connections
1 in. Female Port Thread (PT)
Technical Specs Flow Coefficients Cv
40
Technical Specs Orifice Size
22.2 mm | 0.875 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
