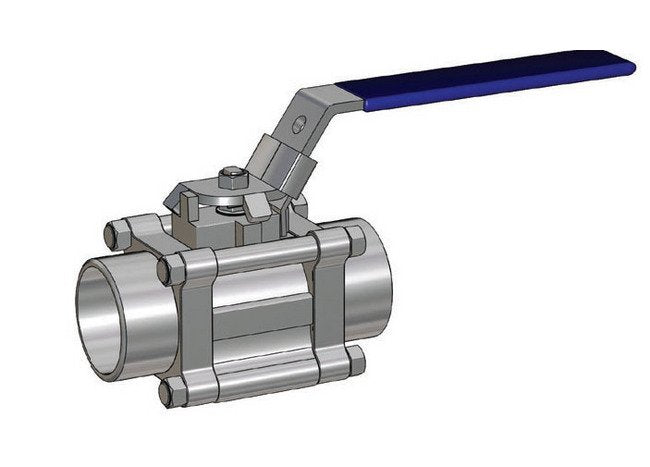

Upgrade your industrial fluid control system with the high-performance SWB 320 Series Swing-Out Ball Valve. With a durable construction and superior materials, this valve offers a pressure rating of 3000 psig, temperature range of -20 to 450 °F, and precise flow coefficients for optimal efficiency. Each valve undergoes rigorous nitrogen and hydrostatic testing, ensuring reliability under demanding conditions. Explore enhanced control and functionality with the SWB 320 Series Swing-Out Ball Valve.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

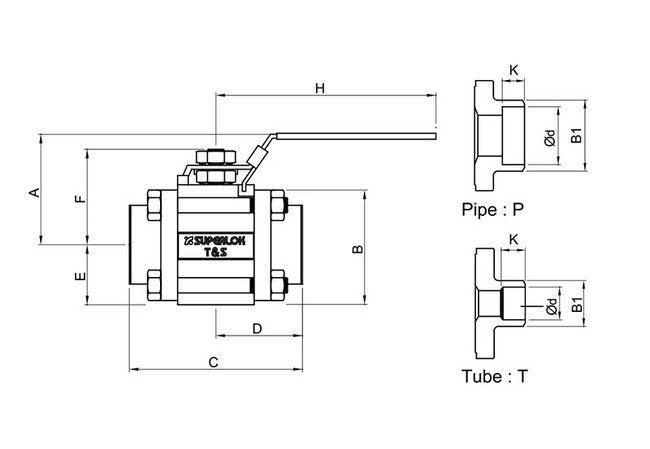

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
32 mm
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension B1
42.20 mm
Technical Specs Dimension C
112.2 mm
Technical Specs Dimension D
55.6 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs Dimension K
15.7 mm
Technical Specs End Connections
1-1/4 in. Socket Weld
Technical Specs Flow Coefficients Cv
80.0
Technical Specs Orifice Size
28.6 mm | 1.125 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
