SWB 320 Series Swing-Out Ball Valve 1.25 Inch
SWB 320 Series Swing-Out Ball Valve 1.25 Inch
SKU:SWB-f863a3
SWB 320 Series Swing-Out Ball Valve with 1.25-inch orifice, 3000 psig, -20 to 450°F. Reliable, durable, and high-performance valve for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve 1.25 Inch
$249.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve 1.25 Inch
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

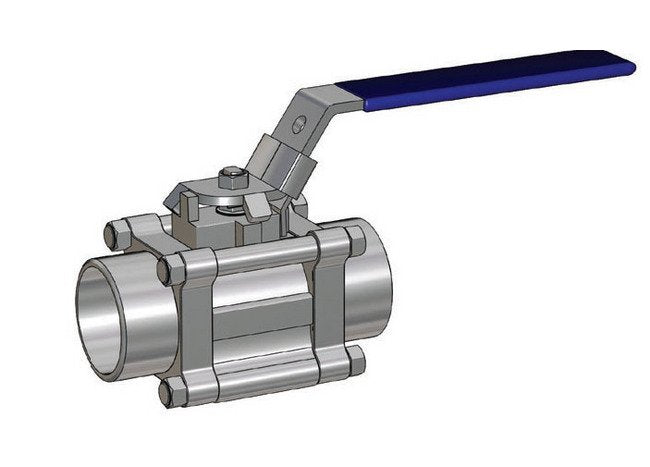

The SWB 320 Series Swing-Out Ball Valve with a 1.25-inch orifice size is a top-tier industrial valve designed to withstand demanding applications. With a pressure rating of 3000 psig and a temperature range from -20 to 450°F, this valve ensures reliable performance in varying conditions. Its precision-engineered 42.7-inch diameter and 1-1/4-inch socket weld end connections guarantee robust connections. Each valve undergoes rigorous testing to meet leak rate standards and can be hydrostatic shell tested for added assurance. Trust in the durability and efficiency of the SWB 320 Series for your fluid control needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

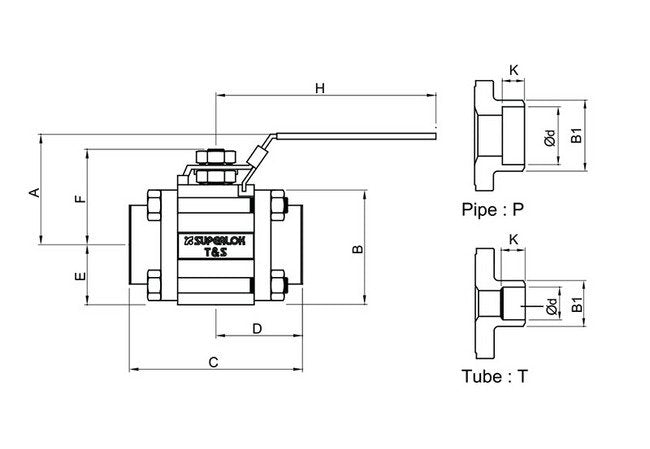

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
42.7 mm
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension B1
62.20 mm
Technical Specs Dimension C
114.4 mm
Technical Specs Dimension D
57.2 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs Dimension K
12.7 mm
Technical Specs End Connections
1-1/4 in. Socket Weld
Technical Specs Flow Coefficients Cv
90
Technical Specs Orifice Size
31.8 mm | 1.25 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
