SWB 320 Series Swing-Out Ball Valve - 1.25" Orifice, 1-1/4" FNPT End Connections

SWB 320 Series Swing-Out Ball Valve - 1.25" Orifice, 1-1/4" FNPT End Connections

SWB-193699

Reliable SWB 320 Series Swing-Out Ball Valve with 1.25" Orifice, 1-1/4" FNPT Connections

$129.99
$129.99
Sale

Initiate Order

SWB 320 Series Swing-Out Ball Valve - 1.25" Orifice, 1-1/4" FNPT End Connections

SWB 320 Series Swing-Out Ball Valve - 1.25" Orifice, 1-1/4" FNPT End Connections

$129.99

Quantity: 1

Claim Your Seller Account

SWB 320 Series Swing-Out Ball Valve - 1.25" Orifice, 1-1/4" FNPT End Connections

SWB 320 Series Swing-Out Ball Valve - 1.25" Orifice, 1-1/4" FNPT End Connections

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

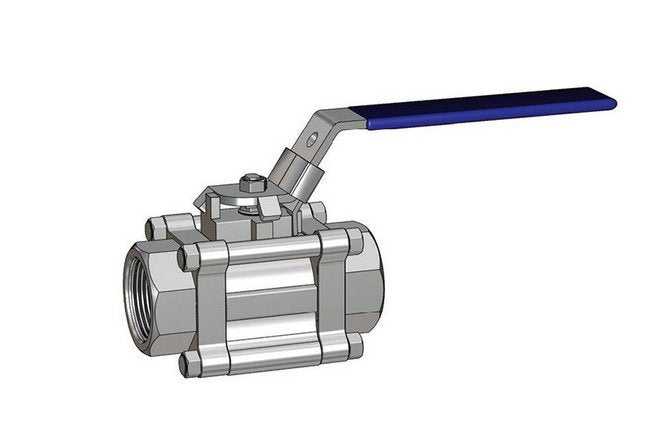

The SWB 320 Series Swing-Out Ball Valve features a 1.25" orifice size and 1-1/4" Female National Pipe Thread (FNPT) end connections, ensuring reliable performance in demanding environments. With a pressure rating of 3000 psig and a temperature range of -20 to 450 °F, this valve is designed for durability and efficiency. Each valve undergoes rigorous nitrogen and hydrostatic testing to guarantee leak-free operation, meeting the highest industry standards for quality and safety.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note

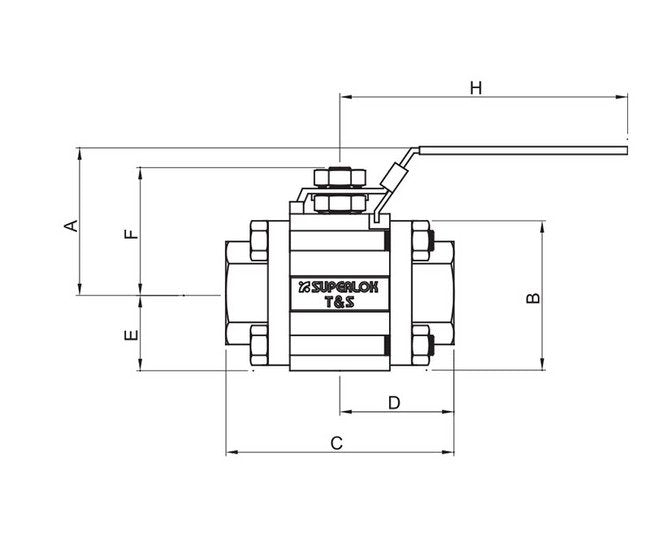

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension C
112.2 mm
Technical Specs Dimension D
55.6 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
1-1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
90
Technical Specs Orifice Size
31.8 mm | 1.25 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
