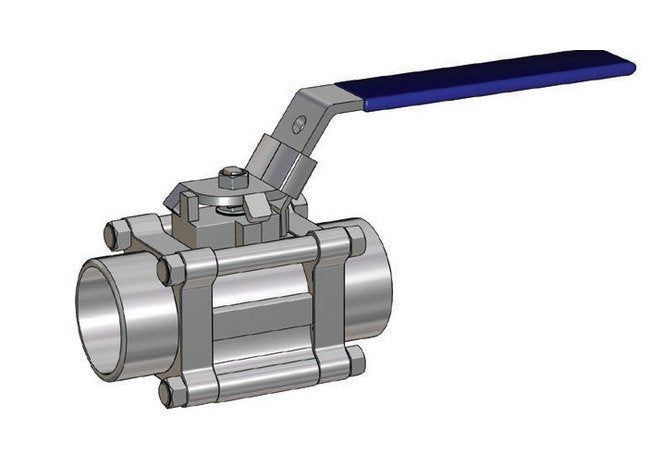

• SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld - Image 1
  • SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld - Image 2
1 2
Superlok-Mako Products LLC →

SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld

SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld

SWB-f870cf

High-performance 1.25in Swing-Out Ball Valve with 3000 psig pressure rating and 1-1/2in socket weld connections.

$289.99
$289.99
Sale

Initiate Order

SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld

SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld

$289.99

Quantity: 1

Claim Your Seller Account

SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld

SWB 320 Series Swing-Out Ball Valve, 1.25in Orifice, 38.3in Diameter, 1-1/2in Socket Weld

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SWB 320 Series Swing-Out Ball Valve is a high-performance industrial valve designed for robust applications. With a 1.25in orifice size and pressure rating of 3000 psig, this valve ensures reliable operations even in demanding environments. Featuring 1-1/2in socket weld end connections, it offers secure and leak-free installations. Tested rigorously to meet stringent standards, this valve guarantees safety and efficiency. Ideal for both consumer and institutional buyers seeking durability and precision.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note

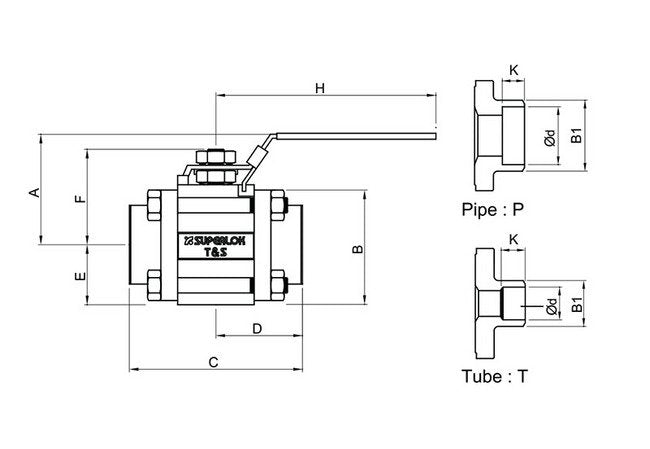

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Diameter D
38.3 mm
Technical Specs Dimension A
102.0 mm
Technical Specs Dimension B
77.7 mm
Technical Specs Dimension B1
62.20 mm
Technical Specs Dimension C
112.2 mm
Technical Specs Dimension D
55.6 mm
Technical Specs Dimension E
38.9 mm
Technical Specs Dimension F
79.8 mm
Technical Specs Dimension H
232.0 mm
Technical Specs Dimension K
19.1 mm
Technical Specs End Connections
1-1/2 in. Socket Weld
Technical Specs Flow Coefficients Cv
100
Technical Specs Orifice Size
31.8 mm | 1.25 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
