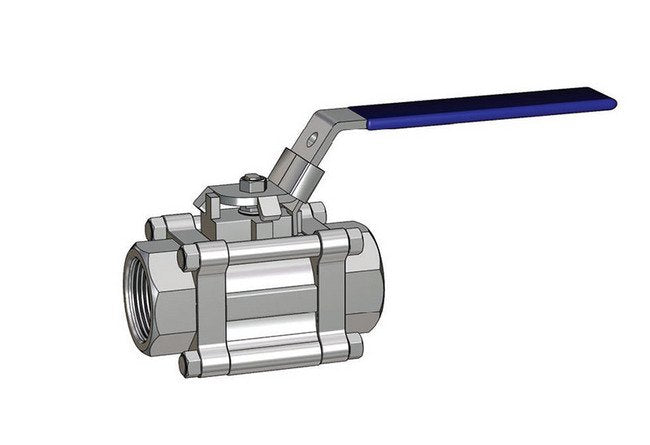

SWB 320 Series Swing-Out Ball Valve - 1/4'' FNPT, 0.281'' Orifice
SWB 320 Series Swing-Out Ball Valve - 1/4'' FNPT, 0.281'' Orifice
SKU:SWB-9b33a0
Discover unmatched flow control with the SWB 320 Series Swing-Out Ball Valve - ideal for industrial applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 1/4'' FNPT, 0.281'' Orifice
$69.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 1/4'' FNPT, 0.281'' Orifice
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve is engineered for precise flow control in demanding industrial settings. With a 3000 psig pressure rating and a temperature range of -20 to 450 °F, this valve ensures reliable performance under varying conditions. Its 1/4'' Female National Pipe Thread end connections provide secure fittings, while the 7.1 mm orifice size offers optimal flow coefficients. Each valve undergoes rigorous testing to guarantee integrity, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

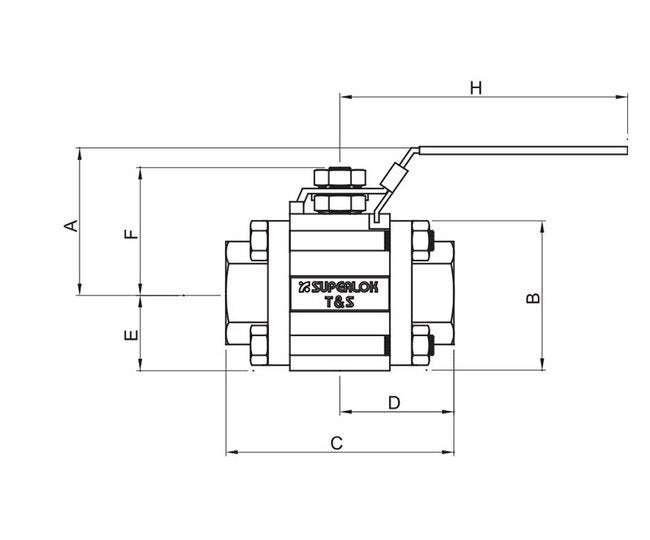

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
55.4 mm
Technical Specs Dimension D
27.70 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
3.8
Technical Specs Orifice Size
7.1 mm | 0.281 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
