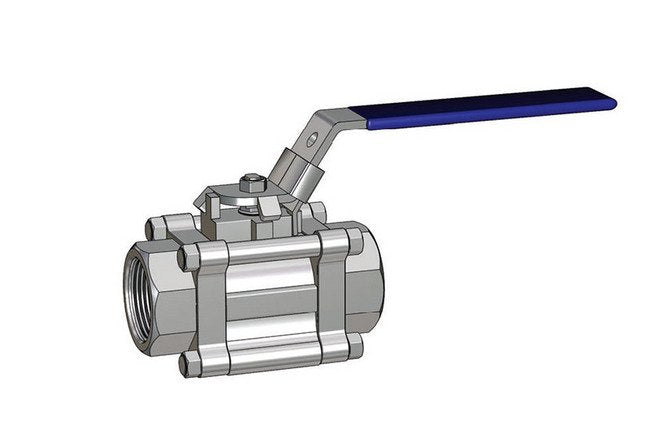

SWB 320 Series Swing-Out Ball Valve - 1.5" Orifice, 2" FNPT End Connections
SWB 320 Series Swing-Out Ball Valve - 1.5" Orifice, 2" FNPT End Connections
SKU:SWB-c26c69
High-performance SWB 320 Series Swing-Out Ball Valve with 1.5" Orifice and 2" FNPT End Connections
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SWB 320 Series Swing-Out Ball Valve - 1.5" Orifice, 2" FNPT End Connections
$249.99
Quantity: 1
Claim Your Seller Account
SWB 320 Series Swing-Out Ball Valve - 1.5" Orifice, 2" FNPT End Connections
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SWB 320 Series Swing-Out Ball Valve is designed for high-pressure applications, with a Pressure Rating of 3000 psig and a Temperature Rating of -20 to 450°F. Its 1.5" Orifice Size and 2" Female National Pipe Thread End Connections ensure efficient flow control. Each valve undergoes rigorous testing to ensure leak-proof performance, meeting industry standards for reliability and durability. With precise dimensions and optional hydrostatic shell testing, this valve is adaptable and dependable for diverse industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

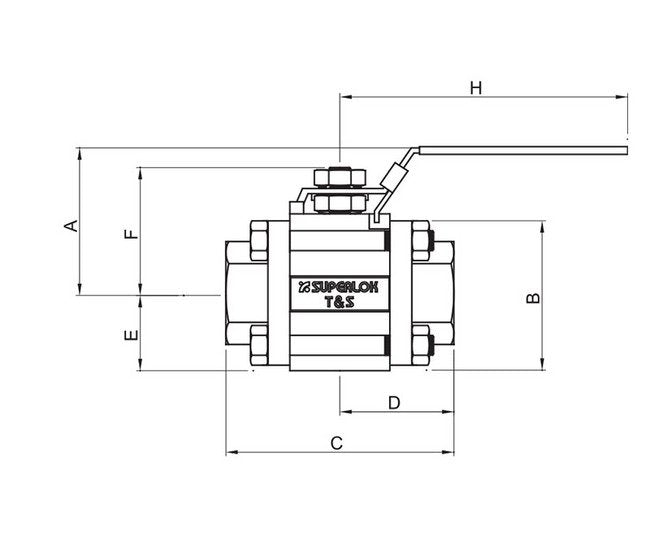

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
106.0 mm
Technical Specs Dimension B
88.1 mm
Technical Specs Dimension C
125.4 mm
Technical Specs Dimension D
62.7 mm
Technical Specs Dimension E
44.2 mm
Technical Specs Dimension F
85.3 mm
Technical Specs Dimension H
232.0 mm
Technical Specs End Connections
2 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
130
Technical Specs Orifice Size
38.1 mm | 1.5 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
