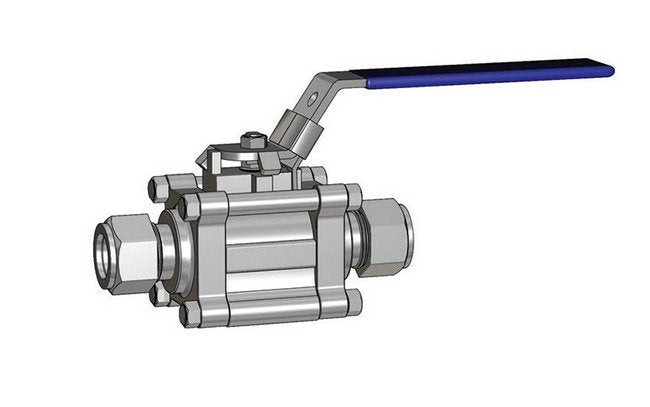

The SWB 320 Series Swing-Out Ball Valve is engineered for high-performance fluid control, featuring a 0.188-inch orifice size and 6mm SUPERLOK® end connections. With a pressure rating of 3000 psig and a broad temperature range from -20 to 450 ºF, this valve ensures reliable operation in diverse environments. Each valve undergoes rigorous nitrogen and hydrostatic testing to guarantee superior quality and minimal leakage. Designed for precision and durability, this valve is ideal for industrial and institutional applications demanding efficiency and compliance with stringent standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

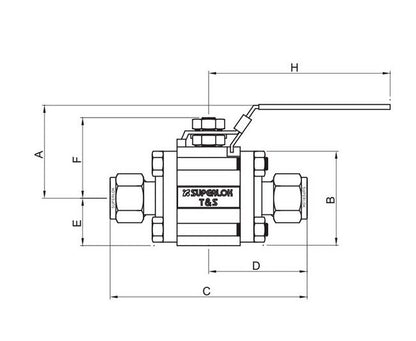

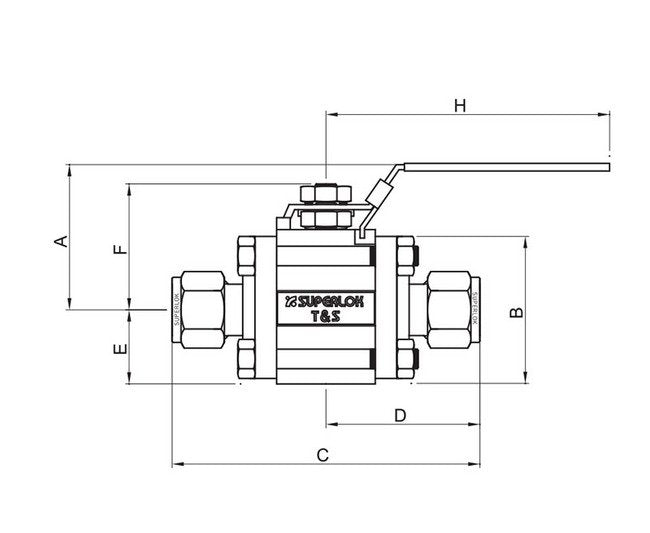

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.7 mm
Technical Specs Dimension B
33.0 mm
Technical Specs Dimension C
80.8 mm
Technical Specs Dimension D
40.40 mm
Technical Specs Dimension E
16.75 mm
Technical Specs Dimension F
31.8 mm
Technical Specs Dimension H
57.2 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Orifice Size
4.8 mm | 0.188 in
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
3000 psig | 206 bar
Technical Specs Temperature Rating
-20 to 450 ºF | -28 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
